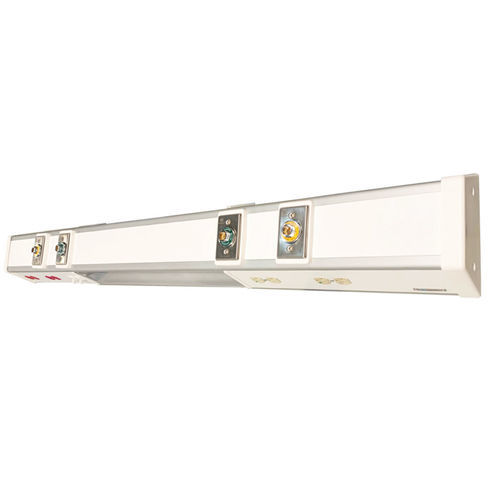

Horizontal bed head unit 3V

wall-mountedfor intensive care servicefor patient rooms

3V Medical bedhead patient unit horizontal type with three separate internai channels in solid state (Low, Medium and Upper) to médical gas copper pipelines, electrical and data wiring installations, to normal, intermediate and intensive care functional and low cost solution to horizontal bedhead units. Structure: • Aluminum extrude profile 6063 T5 alloy, 2.5mm thickness meeting ASTM B-221-02 A/A, colored powder coating finish or natural anodized aluminium color (10 microns lay). Cover Panels: • Hardware free and self supported aluminum extrude profile 6063 T5 alloy, 2.5mm thickness meeting ASTM B-221-02 A/A, colored powder coating finish or wood imitation lay surface apply. End Caps: • High resistance ABS colored plastic injection molded (light gray. beige, white) other colors must be consult to the factory. • Aluminium foundry molded, colored powder coating finish. System host capacity: • Patient lighting • Electrical outlets • Voice and data • Medical gas outlets Finishing: • 10 microns natural anodized • Powder coating finish • Wood type imitation lay surface apply in light or dark oak tone (by sublimate process) • Anti-Bacteria Coating 044/00100, under ISO 22196:2011 test standard (upon prior request). Dimentions: • For one bed service, since 1.20m length • To more bed services length on customer demand
