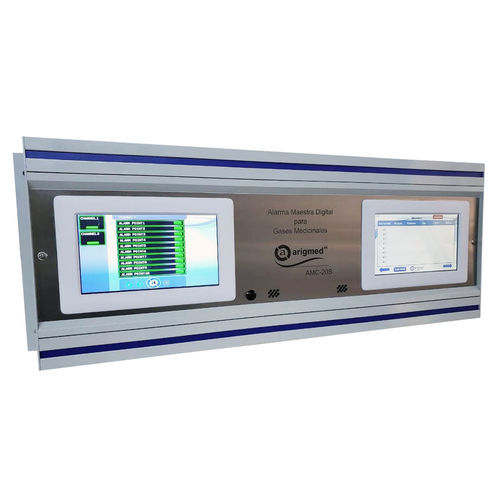

Combination Master Panel Alarm SERIES 2, a Master Panel Relay type Alarm SERIES 2 and a Master Panel Alarm SERIES 2 to Médical Gas Alarm Zone goups surveillance meeting
NFPA99, only available in wall mount enclosure.
Mounting Cabinet:
• Aluminium spécial extruded profiles 6063 T5 alloy made. powder coating finish.
• Only to "Ove wall” mounting.
Capacity:
• Master Panel Relay type Alarm: 10 signais minimum and 40 signais maximum.
• Master Panel Alarm to Médical Gas Alarm Zone goups surveillance: from 1 to 100 zone alarms regardless of the number of médical gas modules that each zone alarm contains.
Graphics:
Master Panel Relay type Alarm:
• Flashing Alarms on each Signal indicating an "abnormal" condition.
• "Normal" condition in each Signal (without alarm event).
• Signal name display on 7 "touch screen.
Master Panel Alarm to Médical Gas Alarm Zone goups surveillance:
• Pressure and Vacuum levels on Real-time Pressure and Vacuum to each zone alarm connected.
• NFPA99 color and Nomenclature of each médical gas of each médical gas alarm zone connected.
• Flashing Alarms on each Gas Module for each médical gas zone alarm connected.
• Area name displayed of each médical gas alarm zone alarm connected.
Alarm Events:
Master Panel Relay type Alarm:
• "Abnormal" event détection on real time of any equipment or alarm connected with dry contacts or Relay communication technology.
Master Panel Alarm to Médical Gas Alarm Zone goups surveillance:
• Low and high preesure and vacuum events Alarm on real time.
