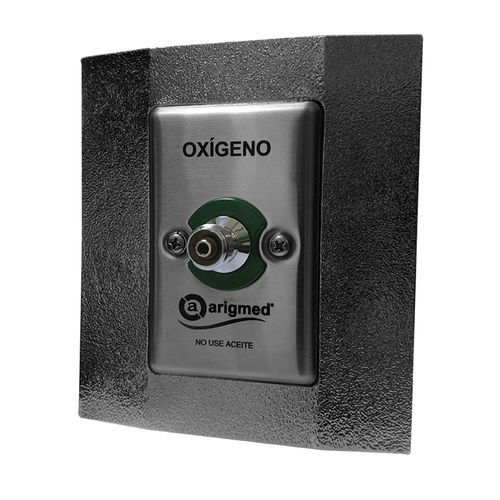

DISS outlet CGA-V5

oxygen

Primary Valve (Back Assembly): • Brass made Primary valve 360°rotation, copper piping extention "K" type 10mm (internai diameter). • Polypropylene injection ckeck valve. • Thermoplastic injection TPVs FDA grade seals. • Wall and Architectural (Patient Bedhead Units) Hardware Mounting Modular assembly, carbon steel sheet 18 gauge nickel finish made. • Ceiling Flardware Mounting Modular assembly available, upon request. • Stainless steel spiral locks. • "Pin-Guide" No cross connection safety system die-cut corresponding to a spécifie médical gas type to Rough-in assembly insertion. Secondary Valve (Rough-in Assembly): • Stainless steel front plate made with brass feeding valve, screw type connection and disconnection of secondary equipment, fastening to the primary valve is by millimeter screws. • Screw connection for each spécifie gas correspond to DISS CGA-V5 technology. • Brass made check valve. • Thermoplastic injection TPVs FDA grade seals. • Stainless steel spiral locks. • ABS plastic injection trim wall plate chrome finish, same material to architectural equipments trim plate, chrome finish. • "Pin-Guide" No cross connection safety system corresponding to a spécifie médical gas type to Back-assembly réception. • zamak chrome finish trim wall plate option (upon request). Compliance Connection: • CGA-V5 (Diameter Indexed Safety System) • NBR (Brazil) Compliance Connection: • CGA-V5 (Diameter Indexed Safety System) • NBR (Brazil) Medical Gas Outlet Flow: • 240 L.P.M. gas flow (if diameters of the main médical gas piping allow it). • 90 L.P.M. to médical vacuum extraction (if diameters of the main medical vacuum piping allow it).
