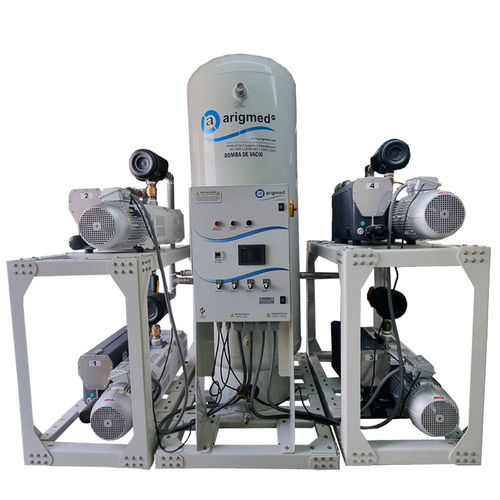

Medical vacuum pump

electronicrotary vanelubricated

• MILS Brand Vacuum Pumps made in France OU Lubricated Rotary Vane Technology (1.5 HP until 20 HP). EVISA Model with a 220v ôOhtz multi voltage direct drive electric motor. (other voltages must be notified in advance to the factory). • Certifications: C E Vacuum Tank: • ASME standard Vacuum tank manufactured. • ASME stamped by the vacuum tank manufacturer. Control Panel: • Electric - electronic Control Panel NEMA12 class cabinet to coordinate alternation sequences, simultaneous use and stop of vacuum pumps. as well, NFPA99 type alarms and local signais. • 7 ” (inches) color touch-screen to control and display the operating status and alarms display of the package médical vacuum system. • Oil levels viewer (if apply) and high temperature pumps levels. Filter System: • Anti-bacteria filters to protect the medical vacuum system. in duplicate. • Particle Filter (paper cartridge) to protect each vacuum pump on the medical vacuum system. Data Relay Output: It includes a data relay output (dry contact) for connection with the master panel alarm source equipment. Available power: • Evisa Series Lubricated varies: 11/2, 2, 3, 5, 71/2,10,15,18, 20 HP Available configurations: • Duplex • Triplex • Quatruplex • Quintuplex • Sextuplex Code Alarms Included: • High Température • Vacuum Pumps Simultaneous Opération • Low Vacuum Level Additional Alarms: • Maintenance Alarm
