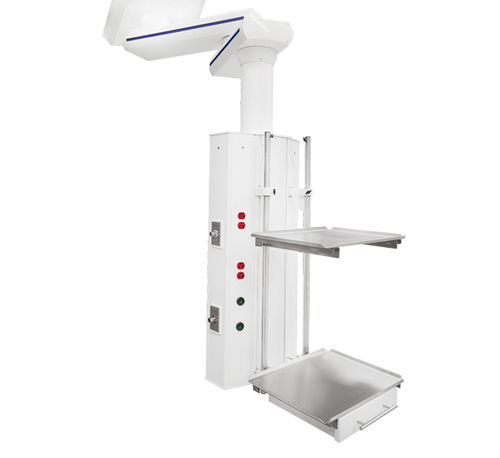

Medical pendant C-900

ceiling-mountedsingle-armarticulated

• Manufactured with spécial extrusion aluminum profiles alloy 6065 Temper 5, 4mm thickness, it complies with ASTM B-221-02-A / A. • 1 or 2 swivel joints for each arm, made of carbon steel with a galvanized finish, mounted and contained in a tempered cast aluminum base. • High-strength. sealed bail-type steel bearings for load. Service Columns: • Manufactured in aluminum profiles of spécial extrusion alloy 6065 Temple 5, with internai separate channels to isolate installations, powder coating finish in white color • With Two service posts stainless steel made for support and sliding of auxiliary médical equipment. Height Dimensions of Service Columns: • C-900 (900mm) • C-1000 (1000mm) • C-1200 (1200mm) • C-1500 (1500mm) Arm Extensions: • 600mm • 800mm • 600mm + 800mm Brakes: • Adjustable Mechanical Friction Brakes (manual calibration) • Electromagnetic Brakes (optional) Complementary Equipment: • Infusion pumps and Venocolysis support system • Drawers and tray Support system • Medical Accessories (monitors, médical baskets, examination lamps, etc) • Cable Organizers System Host Capacity: • Patient ligthing • Electrical outlets • Voice and Data • Medical gas outlets • Medical auxiliary equipment support • Trays and drawers Finishing: • White Color powder coating Arm Sizes: • 1 articulated (0.80m length) • 2 articulated (0.80m length + 0.60m length) • To Different configurations consult to the factory Service Column Sizes: • 0.90m high • 1.00m high • 1.20m high • 1.50m high System support available: • I.V hook and infusion pump support pôle to Médical service columns Maximum load capacity perarm: • 300 kg
