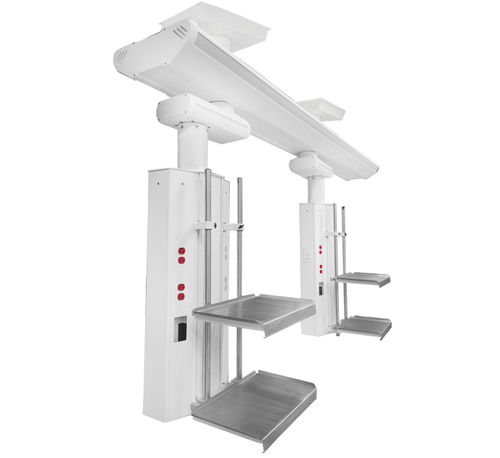

Supply beam system

ceiling-mountedICUwith shelves

Medical Ceiling Patient System for intermediate and critical patient care areas, intégrâtes the services of electrical Systems, lighting, médical gases, voice and data, and supports for auxiliary médical equipment. Structure: • Manufactured in aluminum profiles of spécial extrusion alloy 6063 temper 5. with minimum thickness of the profiles from 2.5mm to 3mm, it complies with ASTM B-221-02 A / A in white baked electrostatic powder paint finish. • Service columns are made of spécial extruded aluminum profiles of the same alloy and finished with the Médical Ceiling Patient System. Service Column Movement Configuration: • Rotating on the same axis. • 60cm length arm for radial movement + Service column rotating movement on the same axis. It can be manufactured in different lengths and with service for one or more beds. you will need to consult the factory. Service Rails: • 6 to 8 service rails to each column. System Capacity: • Ligthing • Electrical Outlets • Data and Nurse Call • Medical Gases • Auxiliary Médical Equipment Supports (trays and vertical rail system) • Rotary Arms System Finishing: • Powder Coating Configuration: • To 1 bed service • To more beds (custom made) Maximum Load Capacity: • 260 kg/m
