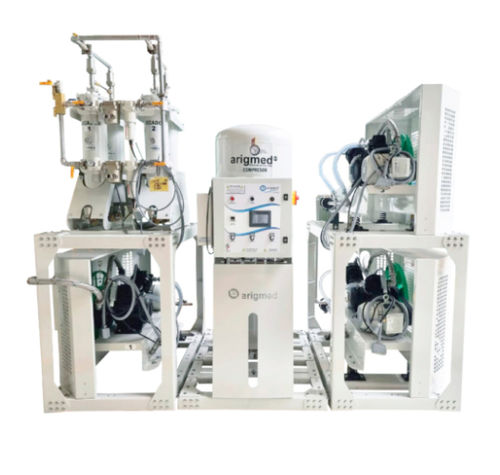

Medical air compression system

pistonstationaryoil-free

• High temperature powder coating finish in black color to air compressor exterior covering. • Belt driven transmission with standard 220v 60htz electric motor, (other voltages must be specified in advance at the factory) • Easy maintenance and replacement of parts. Air Refrigerated AfterCoolers: • Air Refrigerated Aftercoolers guardbelt mount type, stainless steel and copper tubing made with aluminium cooler heat sink fins, includes a multiple connection block with relief, backfiow and automatic valves for each compression unit. Air Vessel: • Air vessel under ASME spécification with internai and external treatment (may include a man access hatch for maintenance and internai cleaning). • ASME stamped by the manufacturer (ASME stamp is only avilable for vessels without man access hatch). Panel: • Electrical-electronic control panel to coordinate alternation, simultaneous use and stop, as well as the control of the Régénération Air treatment system. • NFPA99 specified alarm détection and maintenance alert, NEMA12 class enclosure. • 7" (inches) touch screen display to control and view of compressor opération status. Regenerative Air Dryers: • Regenerative dryers. with Normally open electric valves timed and controlled by the equipment control panel, drying température of -40 ° C, are included in the system in duplicate. Air filter system: • Moisture filters, 1 micron particle filter, antibacterial filters optionals and final line regulator are included in the system in duplicate. Air Quality Monitors: • High Level Carbon Monoxide detection. • High Level Dew Point detection.
