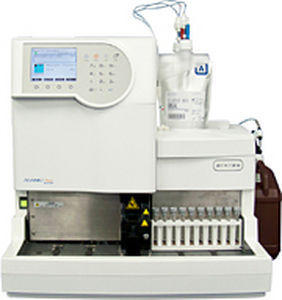

Automatic glycated hemoglobin analyzer ADAMS A1c

for clinical diagnosticcompactHPLC

The ADAMS A1c, HA-8180T is a fully automated Glycohemoglobin analyzer based on HPLC (High Performance Liquid Chromatography) and is highly effective for ß-thalassemia testing. Measurement Item as below HbA2 HbF HbS, HbC, HbE and HbD can be detected. Column design with no more pre-filter change. Color LCD with reagent level, graphs on screen. Specifications Measurement items - HbA1c（Stable HbA1c, S-A1c）, HbA2 and HbF (HbS, HbC, HbE and HbD can be detected.） Reagents *1 - ELUENT 80A, ELUENT 80B, ELUENT 80CT and HEMOLYSIS WASHING SOLUTION 80H Column *2 - COLUMN UNIT 80T Measurement principle - Reversed-phase cation exchange chromatography Detection method - Dual-wavelength colorimetry (wavelengths measured: 420nm/500nm） Resolution - 0.1% Ratio, 1 mmol/mol Measurement range *3 - HbA1c : 3-20%, 9-195 mmol/mol HbA2 : 2-10% HbF : 0-100% Guaranteed measurement range *4 - HbA1c : 4.2-12.9%, 22-117 mmol/mol HbA2 : 2.4-6.3% HbF : 0.1-14.3% Processing speed - 210 seconds per sample Sample container - Blood collection tube （12.3 to 15mm diameter) × ( 75 to 100mm length） Sampling method - Cap-Piercing Rack type - ARKRAY racks
