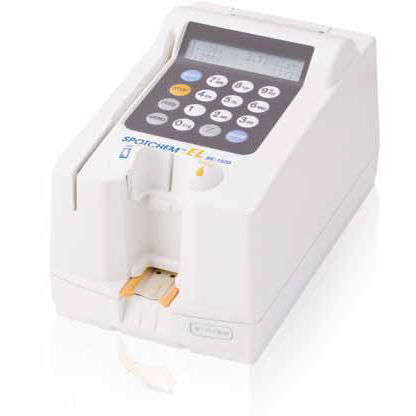

Automatic electrolyte analyzer SPOTCHEM EL

Na+K+Cl-

SPOTCHEM EL is an electrolyte analysis system with capacity for total electrolyte analysis requirements in all fields. Whole blood, serum and plasma can be measured with 22 μl Easy calibration can be completed with magnetic card Na, K, Cl are measured at the same time on the same E-Plate Specifications Measurement item - Na+, K+, Cl− Measurement principle - Potentiometric method with ion selective electrodes Measurement time - Approx. 1 minute Consumed sample - 22 μL Sample supply - Manual pipetting by twin pipette Display - LCD (20 characters × 2 lines) Built-in printer - 36-character thermal printer (Paper width: 58 mm) External output - RS-232C interface (serial) Memory - 50 measurements Measurement conditions - Temperature: 10-30 °C, Humidity: 20-80 % RH (Non-condensing) Power supply - AC100-240 V (Main power supply voltage variation must be within ±10%), 50/60 Hz Power consumption - 40 VA Dimensions and weight - Dimensions: 135 (W) × 225 (D) × 138 (H) mm Weight: Approx 1.5 kg (Analyzer only)
