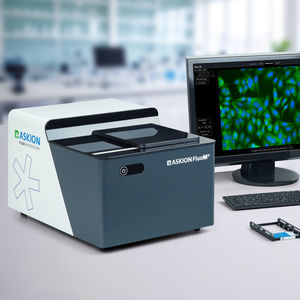

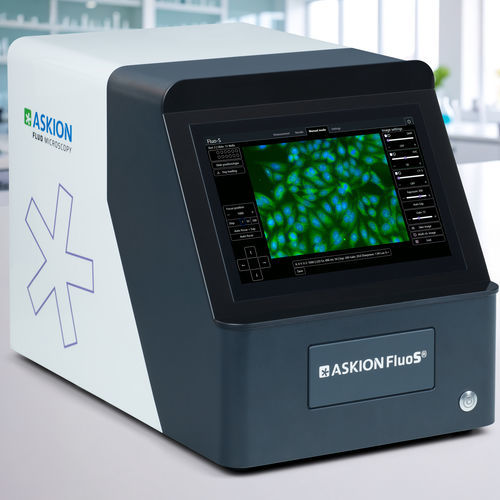

With The Fluo S/M-Platform you can perfect your portfolio of assays with your own branded device, prepared for a wide range of sample formats, flexible with up to four fluorescence channels and changeable microscope objectives.
From manual operation for single samples to integration into a fully automated process – we have the right configuration. Simply define your application and let us find an optimal configuration for your fluorescence microscope.
Camera 2,3 MP; CMOS
Sample formats 2 standard slides 26mm x 76mm or customised
motorised xy-Positioning absolute or relative positioning, manually or as an automatic sequence
Autofocus automatic contrast based autofocus-routine
Fluorescence channels up to 3 fluorescence channels with LED-excitation
standard configuration optimized for
– DAPI (excitation at 385nm),
– FITC (excitation at 470nm) and
– Cy5 (excitation at 633nm)
further customized configurations on request
User interface integrated 10“ touch display
Software application specific functionalities
– manual or automatic operation
– sample positioning and focusing
– image acquisition in the separate fluorescence channels
– various image presentation modes
– customised image evaluation and protocol generation on request
Power supply external power supply 12V / 100W
