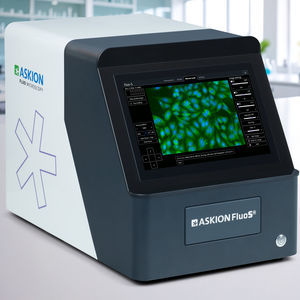

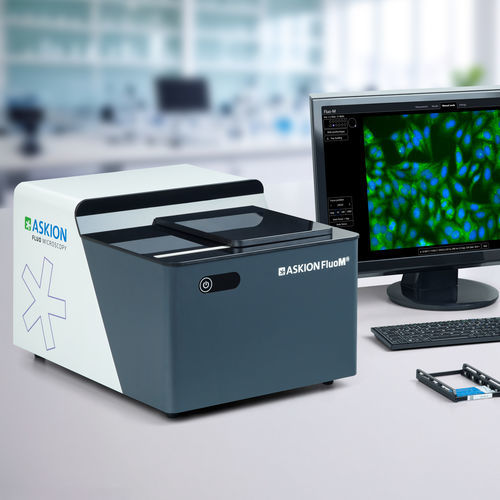

Fluorescence microscope FluoM®

digitallaboratoryinverted

With The Fluo S/M-Platform you can perfect your portfolio of assays with your own branded device, prepared for a wide range of sample formats, flexible with up to four fluorescence channels and changeable microscope objectives. From manual operation for single samples to integration into a fully automated process – we have the right configuration. Simply define your application and let us find an optimal configuration for your fluorescence microscope. Camera 2,3 MP; CMOS Microscope objectives - motor driven objective changer with 3 positions for Sample formats - removable sample insert for customer specific sample formats, such as standard slides 26mm x 76mm or micro well plates motorised xy-Positioning absolute or relative positioning, manually or as an automatic sequence Fluorescence channels motor driven filter changer for up to 4 fluorescence channels with LED-excitation standard configuration optimized for – DAPI (excitation at 385nm), – FITC (excitation at 470nm) and – Cy5 (excitation at 633nm) further customized configurations on request User interface external monitor and keyboard Software application specific functionalities – manual or automatic operation operation – sample positioning and focusing – image acquisition in the separate fluorescence channels – various image presentation modes – customised image evaluation and protocol generation on request Power supply external power supply 24V / 200W
