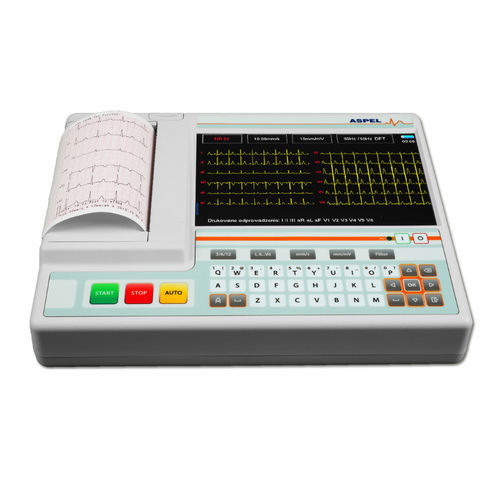

3-channel veterinary ECG system ORANGE v.07.105W

1-channel12-channel6-channel

It is designed for ECG testing of adult and pediatric patients in all health care facilities by trained personnel. The test is recorded in manual or automatic mode with the option of performing analysis and interpretation. The camera can be powered from a 100V - 240V network or from an internal battery. Recording of 12 standard leads. o 12 channels in Cabrera format - (aVL-I-aVR-II-aVF-III-V1-V2-V3-V4-V5-V6). Available types of examinations: manual, AUTO, automatic to clipboard. Automatic record ECG signal from all 12 leads simultaneously, with save to temporary memory function, then depending on the settings: print out examination's result, analysis, interpretation or save to database. Adjustable length of automatic examination recording — interval of 6–30 seconds ECG printed directly from the electrocardiograph using PCL5/6 printer. Printout from database. Possibility to printout additional information about examination or patient. Alpha-numerical soft-key keyboard with functional buttons. Possibility to set parameters: speed, sensitive, intensity of printing. Menu displayed on the screen for easy operation using touch panel. Database of patients and examinations. Internal memory up to 1000 patients, 1000 examinations. Viewing of the memory-stored examinations on display, with the possibility of changing the number of leads, augmentation and speed. Automatic analysis and interpretation in compliance with EN 60601-2-51 (CSE database) - Analysis and interpretation dependable on age & sex of a patient.
