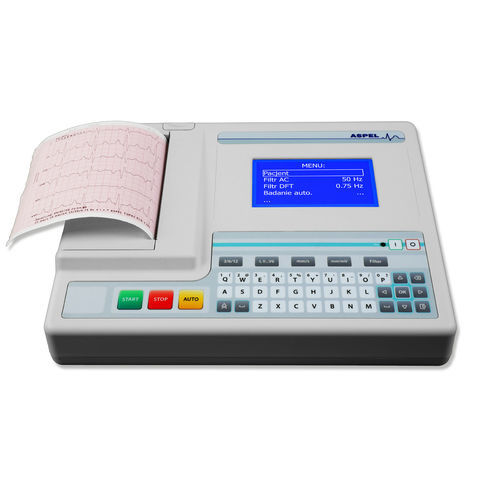

Digital electrocardiograph MINT v.07.301
resting1-channel3-channel

Digital electrocardiograph - MINT v.07.301 - ASPEL  - resting / 1-channel / 3-channel
Digital electrocardiograph - MINT v.07.301 - ASPEL  - resting / 1-channel / 3-channel
Digital electrocardiograph - MINT v.07.301 - ASPEL  - resting / 1-channel / 3-channel - image - 2
Digital electrocardiograph - MINT v.07.301 - ASPEL  - resting / 1-channel / 3-channel - image - 3
Digital electrocardiograph - MINT v.07.301 - ASPEL  - resting / 1-channel / 3-channel - image - 4
Add to favorites
Compare this product


Characteristics

Applications
resting
Number of channels
3-channel, 6-channel, 1-channel
Technology
digital
Options
with printer, with screen, with keyboard
Connectivity
USB

Description

It is designed to perform ECG examinations of adult and pediatric patients in order to search for cardiological abnormalities, detect myocardial ischemia or infarction. The electrocardiograph is intended for use in all health care facilities by trained personnel. The test recording is done in manual or automatic mode. Smooth-Print: Precise printer Legible and precise test prints from a thermal printer increase the comfort of work. Start-Easy: Quick start in two steps The quick start function allows you to use the electrocardiograph instantly. Power-Usb: USB charging Charging function by connecting a USB cable Product Features VAT 8,00% Weight 2,7kg Name ASPEL ECG MINT ECG leads recording 12 standard Printer built-in Paper width 110-112 mm Print mode 1, 3 or 6 leads of the selected group Standard layout printing 1, 3 or 6 leads of the selected group Printout from the patient database yes, adding the name and surname to the printout of the ECG leads Presentation on display 1, 3 or 6 ECG leads Keyboard alphanumeric membrane with functional buttons Menu simple, displayed on the screen Printout line thickness normal Screen 240x128 mm Screen monochromatic Using easy, by keyboard Battery up to 130 automatic exams Working with an open heart yes Network noise filter 50 Hz, 60 Hz Muscle noise filter yes Isoline filter yes INOP electrode disconnection detection independent for each electrode Language multilingual menu Additional power function yes, external Micro-8 USB port Pacemaker beats detected sound signaling Defibrillation impulse protection yes Presentation of stimulating impulses yes, on the display, on the printout Energy saving yes
