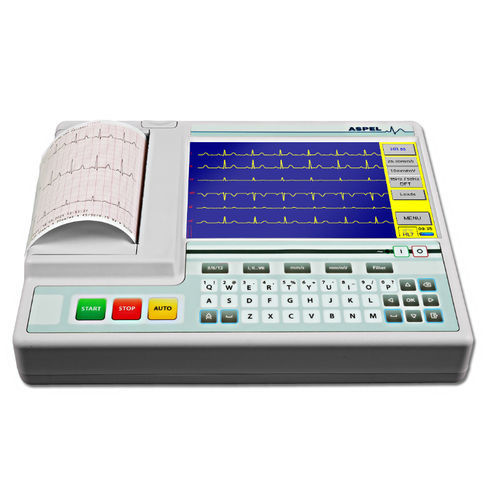

Resting electrocardiograph GREY v.07.325

1-channel12-channel3-channel

It is intended to conduct ECG examinations of adults and paediatric patients in all types of health care centres. ECG examination may be recorded in manual or automatic mode, with the possibility of analysis and interpretation. The device can be powered from 100 V ÷ 240 V mains supply or by an internal battery. o 1 channel - (I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6), o 3 channels in standard format - (I-II-III, aVR-aVL-aVF, V1-V2-V3, V4-V5-V6), o 3 channels in Cabrera format - (aVL-I-aVR, II-aVF-III, V1-V2-V3, V4-V5-V6), o 6 channels in standard format - (I-II-III-aVR-aVL-aVF, V1-V2-V3-V4-V5-V6), o 6 channels in Cabrera format - (aVL-I-aVR-II-aVF-III, V1-V2-V3-V4-V5-V6), o 12 channels in standard format - (I-II-III-aVR-aVL-aVF-V1-V2-V3-V4-V5-V6), o 12 channels in Cabrera format - (aVL-I-aVR-II-aVF-III-V1-V2-V3-V4-V5-V6). Available types of examinations: manual, AUTO, SPIRO, automatic to clipboard, AUTOMANUAL, LONG (v.07.xx5). Automatic record ECG signal from all 12 leads simultaneously, with save to temporary memory function, then depending on the settings: print out examination's result, analysis, interpretation or save to database. Adjustable length of automatic examination recording — interval of 6–30 seconds. Reverse recording in automatic examination to clipboard and in manual examination (v.07.xx5). Rhythm print out in AUTO examination and automatic examination to clipboard. Definable stages of examination according to set up parameters in AUTOMANUAL examination. Storing an examination in memory, 1–15 minutes in LONG mode (v.07.xx5). ECG printed directly from the electrocardiograph using PCL5/6 printer. Printout from database.
