12-channel Holter ECG HLT-712 v.201

3-channelwireless

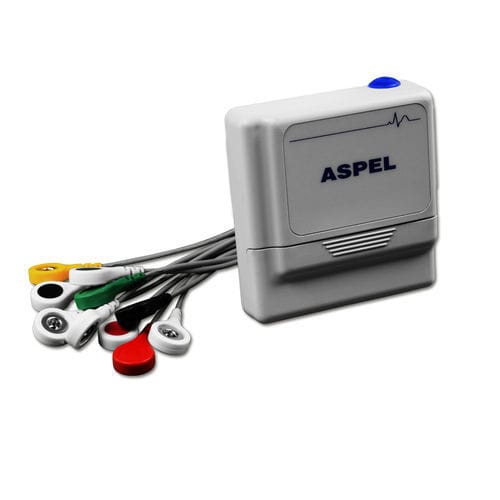

ECG recorder ASPEL HLT-712 v.201 - The recorder was developed with the use of micro-processing technology. It is equipped with a patient’s button and a three-coloured control. Light weight, small size and battery power supply allow for a convenient use of the recorder during the test. The housing of the device is made of plastic, which facilitates the maintenance of its hygiene by the user. The recorder is equipped with a wireless communication system, which enables review and evaluation of the ECG signal. The event button is used for commencing the ECG test in configuration mode and for signalling events during ECG signal recording. The recorder saves ECG data, which is analysed by HOLCARD software, on a microSDHC memory card. The recorder is powered by one AA or Li-Fe alkaline battery or a Ni-MH battery. Li-Fe battery is designated to record ECG signal for a period of 7-days recording mode. An optimised patient’s cable, which reduces potential interferences during ECG signal recording, was used in the recorder. ASPEL HLT-712 703/712 v.3xx is additionally equipped with a colour display and a capacitive keyboard for initial configuration of the recorder and preview of ECG quality. 1. Recording 3 standard ECG leads (703, 712). 2. Recording 12 standard ECG leads (712). 3. View of the ECG test course in wireless communication mode. 4. Detection of a disconnected electrode in configuration mode. 5. MicroSDHC card to save ECG data. 6. Touch keyboard with function keys (703/712 v.3xx). 7. On-screen menu for easy keyboard operation (703/712 v.3xx). 8. Attaching patient’s full name to the ECG test recording. 9. Ability to view patient data (703/712 v.3xx).
