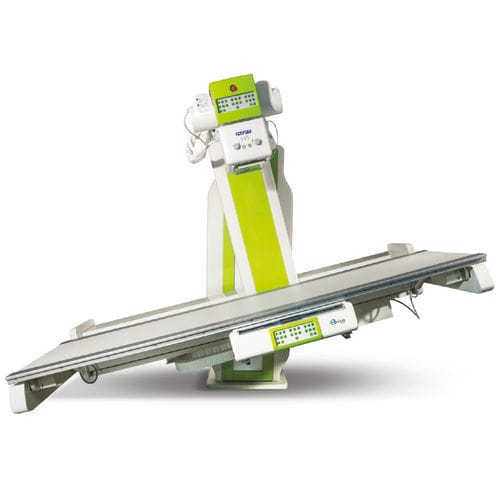

Radiography system Helios DRF

digitalfor multipurpose radiographywith tilting table

Helios DRF has been designed with a privilege to the aspects of lightness, compactness and reduced dimensions. Each movement has been optimized to facilitate the use by the operator and to ensure maximum patient safety, preventing his movements during the examination. The minimum height from ground of the patient tabletop is just 45 cm, the lowest of the category. The access is made easier for any kind of patient. Characteristics Only 45 cm from the ground, best in category The minimum height from ground of the patient tabletop is just 45 cm, the lowest of the category. The access is made easier for any kind of patient. Best in accessibility, best in safe. X-ray Tube motorized rotation ± 180° It allows the directing of the beam towards any external receptor devices. As an example, when the table is tilted at +90°, the x-ray tube can be directed towards a stretcher or a wall stand. It is activated from remote or from the two control boards placed on DRF (B) and tube front (A). FFD 180 cm (optional 200 cm) Adjustable focus to film distance from 105 to 180 cm, as an Option 200 cm. Helios DRF allows chest examinations directly on the table, be it in horizontal or vertical position. Extractable Grids The table is supplied with one or more extractable grids having different focal distances. Two rails under the flat panel group allow quick and safe parking. The operator can select among the following modes: Fixed grid on field Out of field grid Best patient comfort The large dimensions of the tabletop 250x80cm (optional 250×80 cm) linked to the longitudinal excursion of the X-ray tube column and detector allow a patient total scan of 210 cm.
