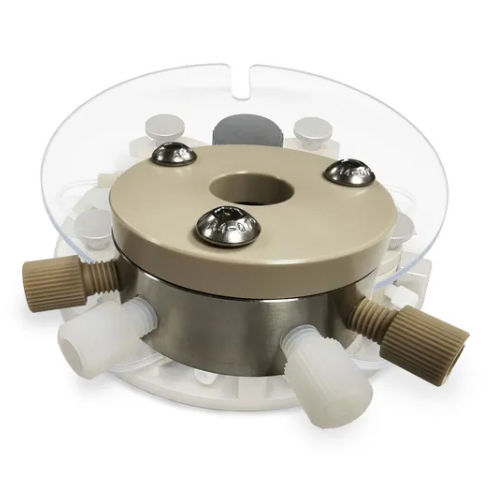

Stirred-tank reactor fReactor Classic HASTELLOY

laboratorymixingheating

Designed by chemists and engineers from within the Institute of Process Research and Development at the University of Leeds, the fReactor Classic HASTELLOY is simple to assemble and modify, making it suitable for a wide range of continuous-flow processes. The fReactor Classic HASTELLOY Complete Kit includes 5 x Continuous Stirred Tank Reactors (CSTR) of 1.8 mL volume each, with hastelloy bases featuring toughened glass windows. Heating and mixing are provided by a standard magnetic hotplate stirrer and fluidic pumps (e.g. HPLC, syringe, peristaltic, gear) are used to drive the reagents around the modules. Integrating the efficiency of pipe-flow processing with the advanced mixing of a CSTR, the fReactor Classic HASTELLOY delivers a general “plug-and-play” setup which is well-suited to multiphasic reactions; allowing chemists to explore continuous-flow processing, with little expertise required. Specification Kit comprises: 5 x Continuous Stirred Tank Reactors (CSTR) of 1.8 mL volume each, with hastelloy bases featuring toughened glass windows. 5 x PEEK fReactor Classic Lids 1 x Aluminium holding plate with thermocouple hole & protective screen 15 x Viton o-rings 6 x PTFE cross stirrer bars 20 x flangeless PFA fittings with ETFE ferrules 15 x PFA blanking plugs 2.5 m x PTFE tubing 1 x tube cutter 1 x hex key
