Stirred-tank reactor fReactor MAXI HASTELLOY

laboratorymixingheating

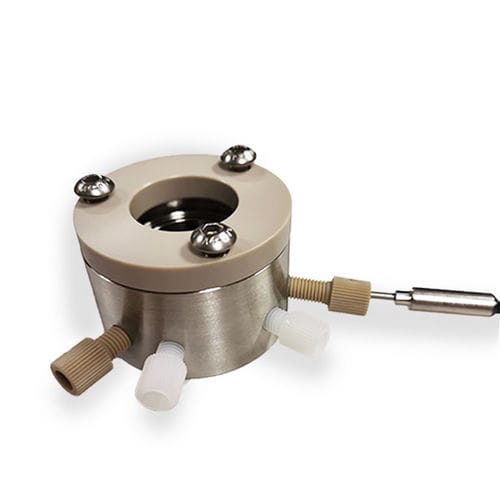

Designed by chemists and engineers from within the Institute of Process Research and Development at the University of Leeds, the fReactor MAXI is simple to assemble and modify, making it suitable for a wide range of continuous-flow processes. fReactor MAXI HASTELLOY kit includes 5 x Continuous Stirred Tank Reactors (CSTR) of 7.5 mL volume each, manufactured from Hastelloy. Heating and mixing are provided by a standard magnetic hotplate stirrer and fluidic pumps (e.g. HPLC, syringe, peristaltic, gear) are used to drive the reagents around the modules. Integrating the efficiency of pipe-flow processing with the advanced mixing of a CSTR, the fReactor range delivers a general “plug-and-play” setup which is well-suited to multiphasic reactions; allowing chemists to explore continuous-flow processing, with little expertise required. Specification Kit comprises: 5 x fReactor MAXI HASTELLOY modules (7.5 mL volume each) 1 x aluminium holding plate with thermocouple hole & protective screen 15 x Viton o-rings 6 x PTFE cross stirrer bars 20 x flangeless PEEK fittings with ETFE ferrules 15 x Tefzel blanking plugs 2.5 m x PTFE tubing 1 x tube cutter 1 x hex key Complete your setup with the following accessories that we also provide: Kalrez O-rings Back pressure regulators Pressure relief valves Hotplate stirrers Syringe pumps
