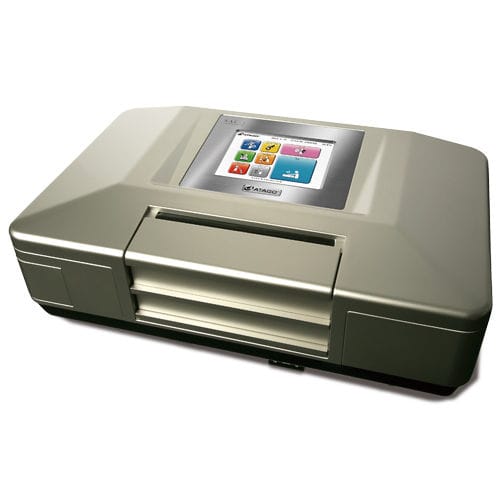

Automatic polarimeter SAC-i 589

for the sugar industrydigital

It has become common that dark color - raw sugar samples are measured at 882nm without decolorization treatment. SAC-i 589/882 can measure samples at both 589nm and 882nm by changing the optical units. This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. Measurement Readings - Angle of Rotation International Sugar Scale Specific Rotation Concentration Purity User scale Angle of Rotation (Temperature Compensation of Quartz Plate) Temperature (°C / °F) Range - Angle of Rotation:-89.9999 to +90.0000° and -360.0000 to +360.0000° International Sugar Scale : -259.0000 to +259.0000°Z Resolution - Angle of Rotation : 0.0001° International Sugar Scale : 0.0001°Z Accuracy - 589nm ①Angle of Rotation：±0.002° (-5.0 to +5.0°) ±0.005° (-45.0 to -5.0°, +5.0 to +45.0°) ②International Sugar Scale：±0.015°Z (-130.0 to +130.0°Z) Other ranges ①Angle of Rotation：±0.010° ②International Sugar Scale：±0.030°Z * Checked by reading a standard quartz plate 882nm ①Angle of Rotation：±0.002° (-5.0 to +5.0°) ±0.005° (-19.3 to -5.0°, +5.0 to +19.3°) ②International Sugar Scale：±0.015°Z (-130.0 to +130.0 °Z) Other ranges ①Angle of Rotation：±0.010° ②International Sugar Scale：±0.070°Z * Checked by reading a standard quartz plate Temperature compensation - 10 to 40℃ Measurement Wavelength - 589nm (equivalent to the sodium-D line spectrum) 882nm（infrared nearby） Dimensions & Weight - 60×36.5×21cm, 20.0kg Included Accessories - PolariSoft(Software) Output - Digital Printer DP-AD (sold separately), Output method : RS-232C (9 pin D-Sub male connector) USB flash drive and PC - USB
