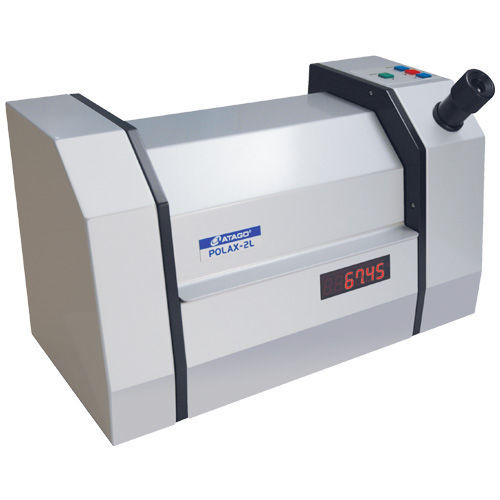

Automatic polarimeter POLAX-2L

for the sugar industry

Polarimeter, which is known as an optical rotation meter, is an instrument to measure optical rotation of "optically active matter" such as saccharin, ascorbic acid and sodium glutamate. Range - Angle of rotation : -179.95° to +180.00° International sugar scale : -130.0°Z to +130.0°Z Resolution - Angle of rotation : 0.05° International sugar scale : 0.1°Z Accuracy - Angle of rotation : ±0.10° International sugar scale : 0.3°Z Temperature compensation - 5 to 40°C Measurement Wavelength - 589nm (equivalent to the sodium-D line spectrum) Dimensions & Weight - 43×22×30cm, 10.3kg (Main Unit only) Included Accessories - Observation tubes : 100mm tube and 200mm tube / each
