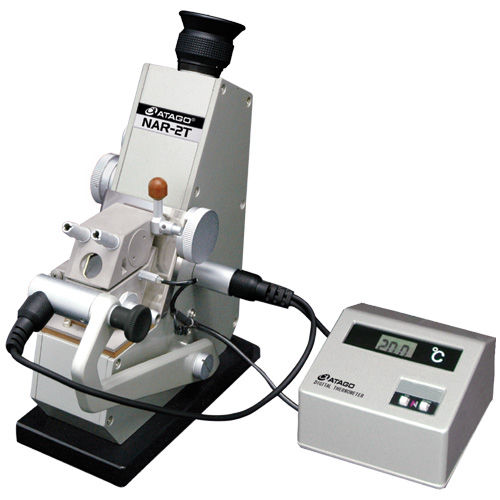

This model is suitable to measure the lower refractive index of NAR-2T which enables to measure the high temperature up to 120℃.
Range - Refractive index (nD) : 1.1500 to 1.4800
Minimum Scale - 0.001
Accuracy - ±0.0002
Average dispersion value - nF-nC (to be calculated according to conversion table)
Measurement Temp. - 5 to 120゚C
(Temperature range available of the circulating water)
Light source - LED (Approximating to wavelength of D-Line)
Dimensions & Weight - 12×20×25cm, 2.8kg (Refractometer)
10×11×7cm, 0.5kg (Thermometer)
