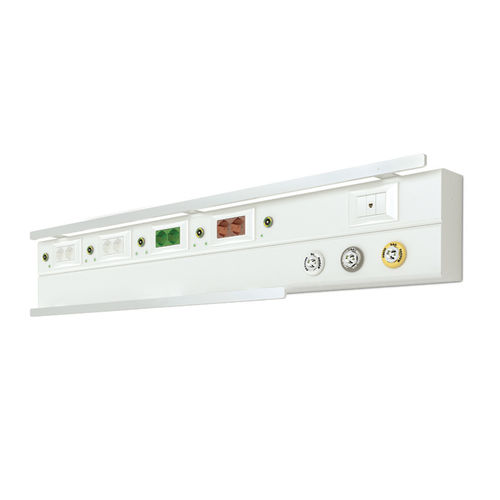

Wall-mounted bed head unit THERAPY W.2

horizontalmodularfor intensive care service

THERAPY W.2 is a bedhead unit for intensive care and resuscitation (medical premises of group 2). Each electric socket is protected by fuses or circuit breacker and equipped with a green LED that indicates the presence of the net. To guarantee the ground efficiency of every single socket, sophisticated and precise security checks are done. GENERAL INFORMATION BODY: Extruded aluminium PROTECTION DEGREE IP: IP20 general - IP40 lighting circuit - IP21 electrical sockets STANDARD COLOUR: Opaque RAL9010 SURFACE TREATMENT ON REQUEST: Antimicrobial coating ELECTRICAL EQUIPMENT: according customer's exigencies ACCESSORIES ON REQUEST: stainless steel medical bar. See the accessories section MEDICAL GAS SYSTEM: preparation (holes) for connection of the terminal units for the passage of medical gases (type according to the customer's technical specification) ELECTRICAL FEATURES FEEDING TENSION: 230V / 50Hz ADDITIONAL FEEDING TENSION: 24V AC MAXIMUM SOCKET POWER: 3000K THERAPY W devices can be custom-made according to technical exigencies. The maximum lenght (reffered to a single-block version) is 3700 mm. CLASSIFICATION ACCORDING TO THE 93/42/CEE DIRECTIVE - I class (no gas) - IIa/IIb (with gas) - Non-stop operation - No sections are applie - Suitable for the installation in group 0, 1 and 2 medical premises - Not suitable for the installation in explosion risk environments (locations with gases and flammable vapours) - Not suitable for the installation in environments with an oxygen amount superior to the 25% with an environmental pressure until the 110kPa in usual circumstances - Not suitable for the categories AP and APG provisions
