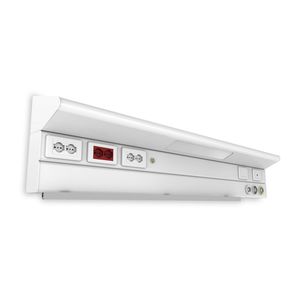

Horizontal bed head unit SENSE G

wall-mountedmodularfor dialysis centers

SENSE G is made with a unique extruded aluminium profile. The reduced size of the LED sources allows the product to have a body with reduced dimensions, resulting elegant and thin. Medical gases outlets can be installed in the frontal part of the bedhead unit, giving maximum flexibility to the spaces configuration during the planning phase. Moreover, their position facilitates the doctors and medical staff activities. GENERAL INFORMATION DIFFUSER: Opal polycarbonate diffuser for reading/examination lighting - Methacrylate diffuser for general lighting PROTECTION DEGREE IP: IP20 general - IP40 lighting circuit - IP21 electrical sockets STANDARD COLOUR: Opaque RAL9010 SURFACE TREATMENT ON REQUEST: Anodization, antimicrobial coating, decorative finishing. Check the possible finishings ELECTRICAL EQUIPMENT: White UNEL 2x10 / 16A + T current socket, 3-module decorative plate, 3-button keypad and data socket. MEDICAL GAS SYSTEM: 3 preparation (holes) for connection of the terminal units for the passage of medical gases (type according to the customer's technical specification) LIGHTING FEATURES Details relating to one bed behead unit 1500 mm long GENERAL LIGHT: 48W - 5672lm - 4000K READING LIGHT: 12W - 1056lm - 4000K EXAMINATION LIGHT: 24W - 2112lm - 4000K NIGHT LIGHT: 3W - 220lm - 4000K SENSE G devices can be custom-made according to technical exigencies. The maximum lenght (reffered to a single-block version) is 3700 mm. For specific needs, please contact our Sales Department. CLASSIFICATION ACCORDING TO THE 93/42/CEE DIRECTIVE - Non-stop operation - No sections are applie - Suitable for the installation in group 0, 1 and 2 medical premises
