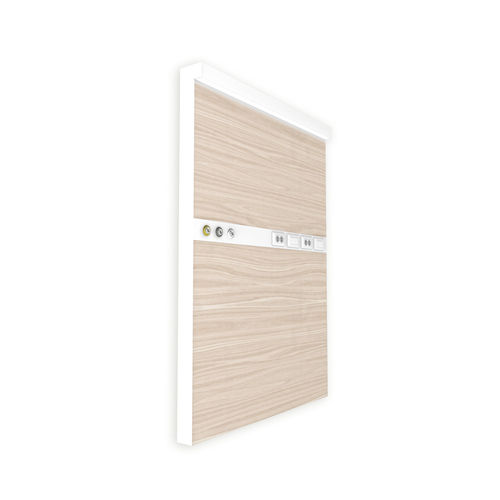

Vertical bed head unit ARMONIA G

with light

ARMONIA G is a multifunctional panel enable to supply reading, examination and night light. The examination light needs the complete power of the LEDs while the reading light is settled by an electronic switching system that reduces the power and, as a consequence, the luminous flux of LEDs. The indirect general light is controlled separately and enables to completely illuminate the patient room. ARMONIA G is equipped with a central channel designed to house medical gases. GENERAL INFORMATION BODY: Steel supporting structure and MDF frontal panels DIFFUSER: Opal methacrylate diffuser for reading/examination lighting - Opal polycarbonate diffuser for general lighting PROTECTION DEGREE IP: IP20 general - IP40 lighting circuit - IP21 electrical sockets STANDARD COLOUR: Opaque RAL9010 SURFACE TREATMENT ON REQUEST: Anodization, antimicrobial coating, decorative finishing. See possible finishings. ELECTRICAL EQUIPMENT: White UNEL 2x10 / 16A + T current socket, no.2 3-module plate flush finish, 3-button keypad and data socket. MEDICAL GAS SYSTEM: 2 preparation (holes) for connection of the terminal units for the passage of medical gases (type according to the customer's technical specification) LIGHTING FEATURES Details relating to one bed behead unit 1400 mm long GENERAL LIGHT: 33W - 2376lm - 4000K READING LIGHT: 33W - 2240lm - 4000K NIGHT LIGHT: 3W - 200lm - 4000K
