Not specified compressor LZ series
piston1-workstationoil-free

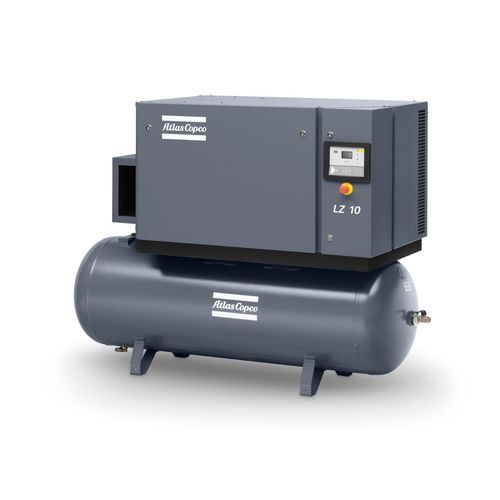

Not specified compressor - LZ series - Atlas Copco Medical Gas Solutions Division - piston / 1-workstation / oil-free
Not specified compressor - LZ series - Atlas Copco Medical Gas Solutions Division - piston / 1-workstation / oil-free
Not specified compressor - LZ series - Atlas Copco Medical Gas Solutions Division - piston / 1-workstation / oil-free - image - 2
Not specified compressor - LZ series - Atlas Copco Medical Gas Solutions Division - piston / 1-workstation / oil-free - image - 3
Not specified compressor - LZ series - Atlas Copco Medical Gas Solutions Division - piston / 1-workstation / oil-free - image - 4
Add to favorites
Compare this product


Characteristics

Applications
not specified
Technology
piston
Number of dental workstations
1-workstation
Options and accessories
oil-free
Pressure

Min.: 4 bar
(58.02 psi)

Max.: 10 bar
(145.04 psi)

Flow

Min.: 39.6 m³/h
(1,398.46 ft³/h)

Max.: 111.45 m³/h
(3,935.82 ft³/h)

Power

5.5 kW, 7.5 kW, 11 kW, 15 kW
(7.48 hp, 10.2 hp, 14.96 hp, 20.39 hp)

Noise level

67 dB, 69 dB, 74 dB, 76 dB

Length

1,440 mm, 1,442 mm
(56.7 in, 56.8 in)

Width

808 mm
(31.8 in)

Height

871 mm, 1,614 mm
(34.3 in, 63.5 in)

Description

One of the most complete oil-free piston compressors on the market today, the LZ meets all your compressed air needs. Description Need nitrogen? Add the LZ Are you a frequent user of nitrogen? The Atlas Copco LZ is the high-performance, cost-saving foundation of your nitrogen generation system. The oil-free LZ doesn’t require additional filtration equipment. As a result, the LZ gives you a more compact footprint, lower maintenance and minimized downtime. Because the LZ doesn’t compromise the adsorbent of the nitrogen generator, your system will last longer as well. Premium Performance Piston compressors have always presented a compelling offer: robust, low maintenance and energy efficient. However, this strong performance typically came with high noise levels and few control options. The Atlas Copco LZ eliminates this trade-off. Adapted to match your needs The LZ oil-free piston compressors are reliable and flexible. Meet the full range with different power (5.5–15KW), pressure (4–10 bar) and electric potential (230/400/460V) options. Choose from flexible integration options: pack and full feature, base and tank mounted versions available (for the LZ 7/10). High energy efficiency The direct driven LZ comes with a number of innovations like a one-bearing motor, load/stop technology… to reduce energy consumption to an impressive minimum. Quiet operation Thanks to its sound-insulating canopy, the LZ achieves noise levels as low as 71 db(A), allowing installation to be close to the point of use.
