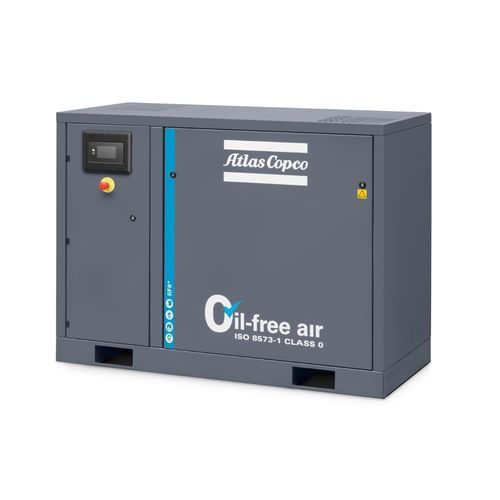

Not specified compressor SF series
scroll1-workstationoil-free

Not specified compressor - SF series - Atlas Copco Medical Gas Solutions Division - scroll / 1-workstation / oil-free
Not specified compressor - SF series - Atlas Copco Medical Gas Solutions Division - scroll / 1-workstation / oil-free
Not specified compressor - SF series - Atlas Copco Medical Gas Solutions Division - scroll / 1-workstation / oil-free - image - 2
Not specified compressor - SF series - Atlas Copco Medical Gas Solutions Division - scroll / 1-workstation / oil-free - image - 3
Not specified compressor - SF series - Atlas Copco Medical Gas Solutions Division - scroll / 1-workstation / oil-free - image - 4
Add to favorites
Compare this product


Characteristics

Applications
not specified
Technology
scroll
Number of dental workstations
1-workstation
Options and accessories
oil-free
Pressure

Max.: 10 bar
(145.04 psi)

Min.: 8 bar
(116.03 psi)

Flow

Max.: 146.9 m³/h
(5,187.72 ft³/h)

Min.: 6.8 m³/h
(240.14 ft³/h)

Power

Max.: 22 kW
(29.91 hp)

Min.: 1.5 kW
(2.04 hp)

Noise level

Max.: 73 dB

Min.: 53 dB

Weight

Max.: 725 kg
(1,598.4 lb)

Min.: 110 kg
(242.5 lb)

Length

Max.: 2,055 mm
(80.9 in)

Min.: 780 mm
(30.7 in)

Width

600 mm, 690 mm, 750 mm
(23.6 in, 27.2 in, 29.5 in)

Height

Max.: 1,844 mm
(72.6 in)

Min.: 540 mm
(21.3 in)

Description

Atlas Copco belongs among one of the most expert scroll air compressor manufacturers. The SF and SF+ oil-free scroll compressors deliver absolutely pure oil-free air with supreme energy efficiency. Description SF Scroll compressors The SF and SF+ plus scroll compressors join our lineup of oil-free air technologies such as screw compressors, tooth and centrifugal, giving you, the customer, the perfect option for your needs and operations. This reliable scroll compressor is hosted in a small package, resulting in a small footprint. Advanced technology The SF series answers your demands through innovative technologies and supreme energy efficiency without compromising quality. The SF and SF+ series comes fully loaded with the state of the art features such as high-end controller Elektronikon®. 100% oil-free air As oil-free compressed air is a prerequisite for many manufacturing processes, we ensure consistent oil-free air by preventing oil from entering your compressed air system. Certified The SF and SF+ are certified Class 0 (ISO 8573-1). Refers to zero risks of contamination, damages or unsafe products and losses from operational downtime. SF+ 8-22 multi-scroll units bring in the benefits of a modular system utilizing two to four compressor modules integrated into one canopy. The Elektronikon® continuously monitors the status of each element and starts and stops the compression elements, ensuring that the compressed air output matches the air demand. Advanced scroll air compressor technology Air compression is achieved by the interaction of a fixed and orbiting scroll.
