Medical compressor AQ series
screw1-workstationoil-free

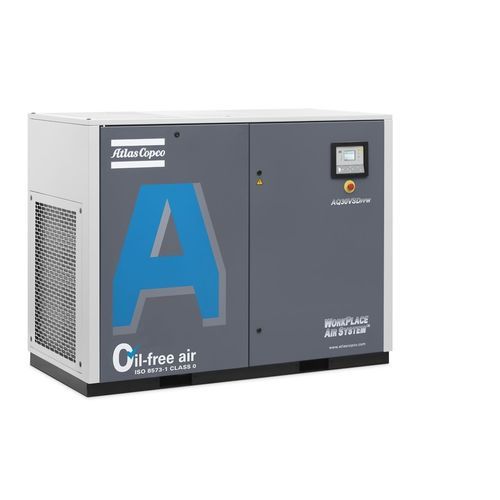

Medical compressor - AQ series - Atlas Copco Medical Gas Solutions Division - screw / 1-workstation / oil-free
Medical compressor - AQ series - Atlas Copco Medical Gas Solutions Division - screw / 1-workstation / oil-free
Medical compressor - AQ series - Atlas Copco Medical Gas Solutions Division - screw / 1-workstation / oil-free - image - 2
Add to favorites
Compare this product


Characteristics

Applications
medical
Technology
screw
Number of dental workstations
1-workstation
Options and accessories
oil-free
Pressure

Max.: 12.75 bar
(184.92 psi)

Min.: 7.25 bar
(105.15 psi)

Flow

Max.: 9.7 m³/min
(342.55 ft³/min)

Min.: 3.7 m³/min
(130.66 ft³/min)

Power

Max.: 55 kW
(74.78 hp)

Min.: 15 kW
(20.39 hp)

Weight

Max.: 1,378 kg
(3,038 lb)

Min.: 592 kg
(1,305.1 lb)

Noise level

Max.: 72 dB

Min.: 65 dB

Description

The AQ water-injected screw compressors meet your need for pure oil-free air. They deliver best-in-class energy efficiency for applications that demand reliability and purity. The AQ eliminates the risk of contamination with 100% oil-free air for applications that require the highest levels of purity like - medical - pharmaceutical production - food production - critical electronics The water-injected screw compressors, water-cooled or air-cooled, meet your needs for quality air with high-pressure capability and energy efficiency. Atlas Copco’s AQ oil-free compressors eliminate the risks of oil contamination. Whether your activities are in pharmaceutical production, food & beverage, critical electronics or in a similarly exacting industry, air quality is paramount for your end product and production process. Variable Speed Drive - Driving down your energy costs Over 80% of a compressor’s lifecycle cost is taken up by the energy it consumes. Moreover, the generation of compressed air can account for more than 40% of a plant’s total electricity bill. To cut your energy costs, Atlas Copco pioneered Variable Speed Drive (VSD) technology in the compressed air industry. VSD leads to major energy savings, while protecting the environment for future generations Advanced monitoring The Elektronikon® controller can be adapted to your specific needs with extra sensors, digital contacts, fieldbus, Internet and SMS communication functions. Optimize the operation of your complete compressor room by using the ES multiple compressor controller. More control To maximize energy efficiency, the Elektronikon® controls the main drive motor
