Laboratory compressor HX series
piston1-workstationoil-free

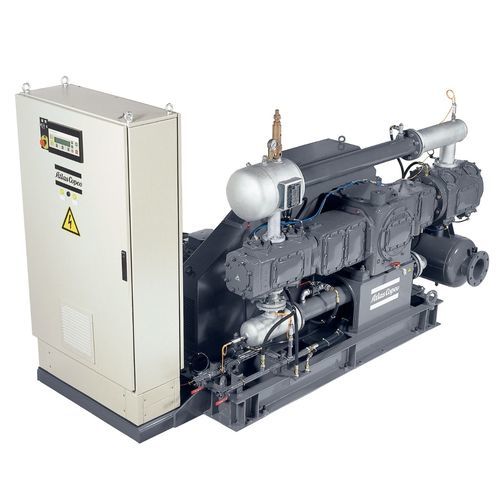

Laboratory compressor - HX series - Atlas Copco Medical Gas Solutions Division - piston / 1-workstation / oil-free

Laboratory compressor - HX series - Atlas Copco Medical Gas Solutions Division - piston / 1-workstation / oil-free - image - 2

Add to favorites

Compare this product

Characteristics

Applications

laboratory

Technology

piston

Number of dental workstations

1-workstation

Options and accessories

oil-free

Pressure

Max.: 15 bar
(217.56 psi)

Min.: 10 bar
(145.04 psi)

Flow

Max.: 1,160 m³/h
(40,965.01 ft³/h)

Min.: 300 m³/h
(10,594.4 ft³/h)

Power

Max.: 45 kW
(61.18 hp)

Min.: 16 kW
(21.75 hp)

Description

Designed for continuous reliable and safe operation at low cost, our oil-free HX/HN-15 product range is configured with 2 compression stages in a compact design. Piston compressors HX&HN-15: the right reliable choice The Atlas Copco HX/HN-15 are water-cooled horizontal balanced reciprocating compressors with 2 compression stages up to 160 kW. The compressors come as complete units, skid mounted and completely wired. HX/HN-15 delivers 100% oil-free air for high-pressure applications - between 10 and 15 bars maximum. The quality of air is perfectly adapted to critical applications claiming oil-free air such as: food and Beverage electronics power industries Energy efficient, these reliable machines provide a steady supply of compressed air 24h a day, with limited maintenance costs keeping life cycle costs to a minimum. Technology you can rely on Advanced design reduces friction load. Excellent cooling and low inter-stage temperatures for increased lifetime. Delivering clean air Eliminate the risk of oil contamination minimize the risk of operational downtime: P-compressors are ISO 8573-1 Class 0 certified. Save on energy and maintenance The Elektronikon® control unit gives a detailed overview of operational status. Horizontal skid design for quick and easy maintenance.
