Automatic packaging system VM 273
vacuumfor sterile materialsgas

automatic packaging system
automatic packaging system
automatic packaging system
automatic packaging system
automatic packaging system
automatic packaging system
Add to favorites
Compare this product


Characteristics

Operational mode
automatic
Type
vacuum
Product applications
for sterile materials, gas
Container type
can
Application domain
medical industry
Weight

319 kg
(703.3 lb)

Width

1,260 mm
(49.61 in)

Height

1,070 mm
(42.13 in)

Description

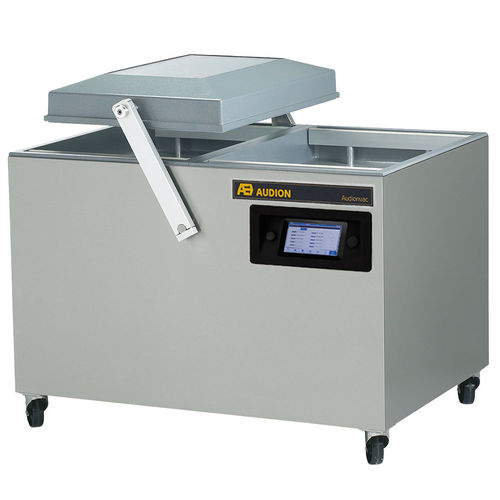

Validatable double vacuum chamber Large double vacuum packaging machine for heavy duty and validation. Aluminum vacuum chambers and lid with sight glass. The sight glass enables you to view your product during your packaging process. Equipped with a strong 100 m3/h high quality Busch pump and two long seal bars in each chamber. Plug and play but if you have special validatable packing needs, no problem. “Industrial range of efficient vacuum packaging machines suitable for multiple applications in both pharma, medical and industrial products.” Complies to ISO 11607-2 validation requirements for sealing Critical process parameters to be controlled and monitored: Vacuum / gas pressure Seal temperature Seal time Seal pressure Equipped with accurate Audion Temperature Controller (ATC) Equipped with user friendly touchscreen interface (ADC) Automatic stop of cycle if one of the critical parameters has exceeded alarm limit Critical process parameters can be calibrated Seal data can be logged and exported to PC via USB stick Access level controllable by login passwords for different user levels Bi-active 8mm seal bars
