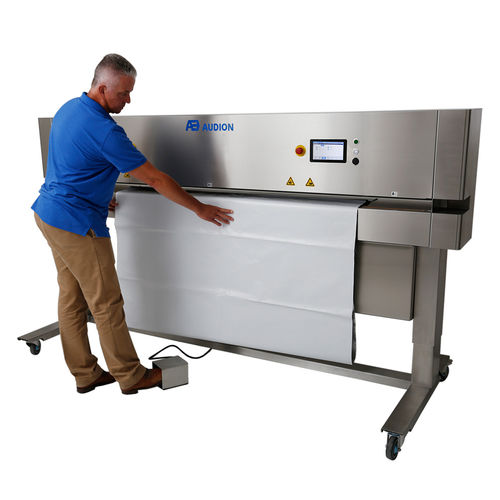

Impulse sealer PSR series

floor-standingfor medical packaging

Powerful extra large impulse sealer for ultimate product safety Audion’s XL stainless steel impulse sealer for sealing extra large (PE/ aluminium laminate/ anti static film) bags is available with a 2000 or 2500 mm seal bar length. This machine comes in 2 models: the standard PSR XL and the validatable PSR PLUS XL The PSR XL and PSR PLUS XL series are both standard equipped with the user-friendly Audion Touch Techware. Up to 50 seal parameter recipes can be stored to make sure that the operator always has the ideal pre-set settings available for each product/package. Due to the heavy-duty construction and the high performance (bi-active) seal bars, thick and/or special films are sealed effortlessly with a reliable 8 mm seal. Sealing and cooling times are independently adjustable depending on the quality of plastic used. The PSR PLUS XL series can be used in validated processes and are compatible with EN 868-5 and DIN 58993, part 7 norms and also fully comply with the ISO 11607-2 and ISO/TS 16775 Our PSR XL and PSR PLUS XL series are also available with an integrated vacuum- / gasflush system: VAC PSR XL and VAC PSR PLUS XL Floor model Extra long sealing bars (2000 mm or 2500 mm length) 8 mm seal, suitable for sealing thicker films 20 – 400 micron Industrial construction with robust seal bars for extra powerful seal performance Stainless steel cover Audion Touch Techware integrated Validatable: monitoring seal time, seal temperature and seal force (only our PSR PLUS XL models are validatable) Data logging by USB Access control safety 50 recipes can be stored Bi-active seal bars Large seal opening 45 mm Emergency stop Electrical foot operation
