Single-channel patch-clamp system Pico 2 Amp

whole-cellminiaturecustom

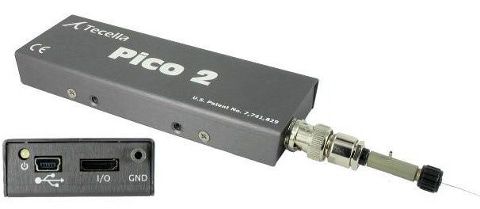

The smallest patch clamp system available. Pico 2 Amp & Digitizer Go green with your Patch-clamp experiments with the miniature USB-Powered Pico by Tecella Record a single channel at up to 20kHz sampling rate in a pocket sized lightweight design. It can even be mounted straight on to a manipulator! Pico is a perfect fit for system integration taking into account size and affordability Tecella has released the Pico, a full-featured, low-noise patch clamp amplifier with an integrated digitizer and headstage. Pico is ideally suited for whole cell (Vclamp and Iclamp) and single-channel (patch, planar lipid bilayer, and synthetic nanopore) recording, as well as cellular electrochemistry. Pico measures just 5.6″ x 1.8″ x 0.7″ | 14.2cm x 4.5cm x 1.7cm, weighs 3 ounces (85 grams) and consumes less than 1 watt of power. Pico’s standard compensation circuits include series resistance, fast capacitance, three slow capacitances, and junction potential offset. The patented spread frequency compensation can automatically compensate any arbitrary capacitance profile in approximately 3 seconds. Software support includes TecellaLab acquisition software with export to ATF and tab formats, WinWCP from the University of Strathclyde, LabView VI, and C++ SDK/API for custom development and integration Windows PC Driver Common driver for all models. WinWCP University of Strathclyde jClamp SciSoft Company TecellaLab Tecella USB-powered Miniature Patch Clamp Amplifier and Digitizer Full-featured 1-channel amplifier
