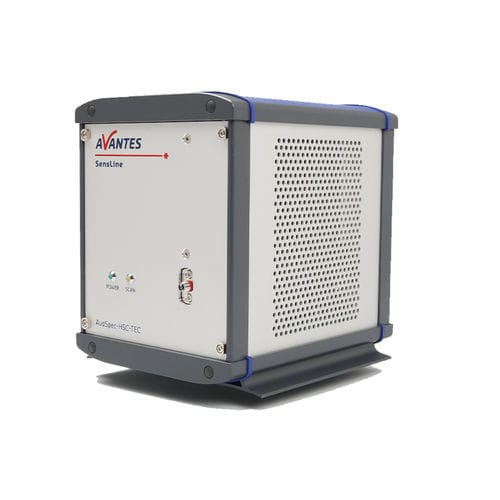

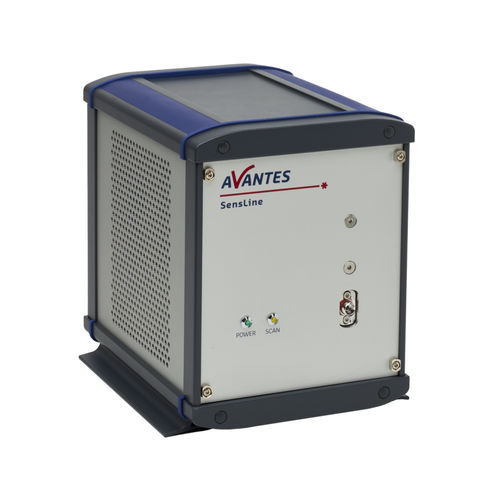

UV-Vis-NIR spectrometer AvaSpec-HERO
fiber opticVis-NIRUV-NIR

UV-Vis-NIR spectrometer
UV-Vis-NIR spectrometer
UV-Vis-NIR spectrometer
Add to favorites
Compare this product


Characteristics

Type
UV-Vis-NIR, fiber optic, Vis-NIR, UV-NIR
Detector type
CCD
Configuration
compact
Other characteristics
high-resolution, with USB port, high-sensitivity
Wavelength

Max.: 1,160 nm

Min.: 200 nm

Length

185 mm
(7.3 in)

Width

161 mm
(6.3 in)

Height

185 mm
(7.3 in)

Weight

3,500 g
(123.5 oz)

Description

The AvaSpec-HERO is the answer for those who are in need of high resolution and high sensitivity! This spectrometer combines the best of both worlds, so no compromise is needed. The AvaSpec-HERO is built around our High-Sensitivity, Compact (HSC), 100mm optical bench offering a NA of 0.13 and a cooled, back-thinned detector (1024×58 pixels). Electronics-wise, it uses our latest AS7010 board, which includes a high-performance Analog to Digital converter with excellent noise performance and the ability of high-speed communication through USB 3.0 and Ethernet. The combination of these two state-of-the-art components will give you an excellent instrument, offering the ideal balance between sensitivity and resolution and the capability of using longer integration times in low-light applications yet ensuring perfect signal-to-noise performance, transferred by the latest communication standards. Technical Data Resolution - 0.2-7 nm, depending on configuration (see table) Stray light - 0.5%, depending on grating Sensitivity (counts/µW per ms integration time) - 445,000 Detector - CCD array image sensor with one stage TE cooled, 1024 pixels Signal/noise - 1200:1 Dynamic range - 40,000 AD converter - 16 bit, 250 kHz Integration time - 5.2 ms-180 sec Interface - USB 3.0 high speed, 5 Gbps, gigabit Ethernet 1 Gbps Digital IO - HD-26 connector, 2 Analog in, 2 Analog out, 3 Digital bidirectional, trigger, synchronization, strobe, laser Sample speed with on-board averaging - 5.2 ms/scan Data transfer speed - 5.2 ms/scan (USB3 and ETH) Power supply - 12 VDC, 1.5 A
