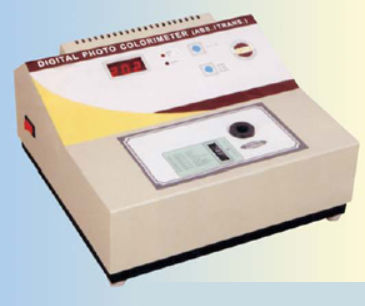

Laboratory colorimeter AVI-516

digital

This colorimeter is an advance version of any existing model available in the market. It gives very accurate & stable reading of transmission/optical density (O.D.) & can be useful for small/medium clinics & path-labs. The unique feature of this colorimeter is “AUTOZERO FACILITY” to avoid the cumbersome adjustment done by potentio meter. TECHNICAL SPECIFICATIONS : Wavelength Range - 400-700 nm[ 8 Glass Filters]* Peak wave lengths - 400, 490, 520, 540, 590, 620, 650, 700 nm Minimum Volume - 1.0 m.l. Light Source - 6V, 10W, Tungsten Filament lamp Test Tubes - 10 nm Æ (Inner) Detector - Silicon Photodiode Display - 2 1/2 digits seven segment display Key Pad - 2 X 1 (2 Feather Touch Switch) • Trans. / O.D. • Auto Zero Power Supply - Mains : 220 ± 10%, 50 Hz, 1 Æ Battery - 12 V DC Working Temperature - 10o C-45o C Dimensions - 300 L X 275 W X 160 H mm Weight - 5 kg.
