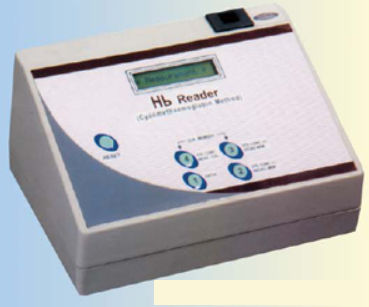

A very light weight, accurate & reliable Haemoglobin reader based on “Cyanmethemoglobin method”. It gives direct reading of unknown solution in concentration (gm/dl) without any calculations. A microcontroller has been incorporated in the system for accuracy & reproducibility of the findings. It operates in “Measurement & Calibration” mode. The 15 gm/dl. Concentration of standard solution has been fed as a default value, however you can change this value by going into “Calibration” mode.
TECHNICAL SPECIFICATIONS :
Wavelength Range - -546 ± 5 mm
Display - 16X1 LCD Alpha numeric
Key Pad - 2X2 Soft Touch
Light Source - Green Colour LED
Detector - Silicon photo diode
Memory - 40 Tests Storage Facility
Auto Zero - Available
Input supply - -Mains : 220 ± 10%, 50Hz, 1 Æ
Battery - 12 VDC
Test Tubes - Square 10 X 10 mm (Plastic)
Weight - 1 1/2 kg. Net
