PCR microplate 4ti-0750 series

transfer48-well96-well

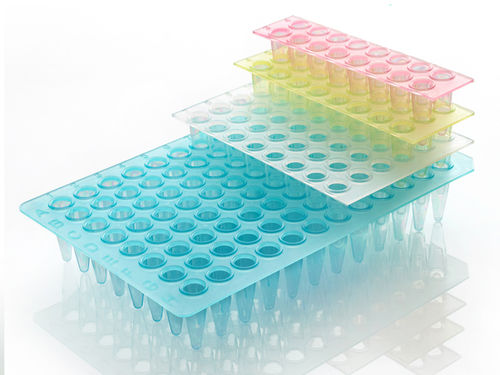

Segments produced by dividing our standard profile 96 Well Non-Skirted PCR Plate into 8 well, 16 well, 24 well, 32 well or 48 well segments. A versatile solution for when a whole PCR plate may not be needed. Virgin polypropylene; cut corner H12 <200µl working volume, 300µl total well capacity Product Details Key Features Quality Subject to a strict QC procedure which includes a visual check and leak testing of every tube Molded from virgin polypropylene under ISO certified cleanroom conditions in our UK-based production facility Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen Wells Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results Standard 0.2ml (200µl) working volume, with a 0.3ml (300µl) total well capacity when used with sealing options Maximum thermal conductivity for efficient heat transfer and precise thermal cycling Raised well rims prevent cross contamination and facilitate effective sealing for reduced evaporation Frame Alphanumeric grid reference to aid well and sample identification Use Compatible with universal standard block thermal cyclers and sequencers Compatible with standard multichannel pipettes Options Available with the following color options: clear, blue, red, green, yellow, and purple Super clear well version maximizes sample visibility Specifications - Plate length - 120.00 ± 0.25mm Plate width - 80.00 ± 0.25mm Plate height - 20.20 ± 0.10mm Well depth - 20.20 ± 0.10mm Well diameter - 5.46 ± 0.10mm Total well capacity - 0.3ml (300µl) Working volume - <0.2ml (200µl) Distance to center of A1 from top edge - 8.75 ± 0.25mm
