Spectrometry light source SCL101

xenonkryptonargon

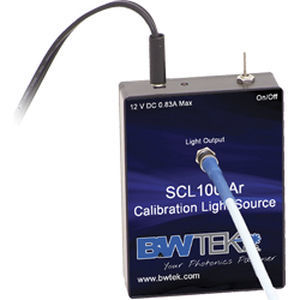

The SCL101 spectral calibration source comes in 6 lamp models: Argon (Ar), Krypton (Kr), Mercury (Hg), Mercury/Argon (Hg/Ar), Neon (Ne), and Xenon (Xe). These sources can be used for wavelength calibration of monochromators, spectrometers and spectroradiometers. By exciting these various gases, they will produce narrow intense lines of the corresponding element(s). This light source comes with a 9V DC power supply and features an SMA905 connector for fiber optic light coupling with no need for fiber alignment. Applications Calibration of Spectroscopic Instrumentation Resolution Testing / Verification Features Compact & Lightweight Portable Battery Operation Fiber Coupled Various Lamp Selections UV - NIR Excellent Stability Specifications AC Adapter Input - 100 - 240V, ~47 - 63Hz AC Adapter Output - 9V DC 0.3A Max Lamp Operation Voltage - <=350 V rms, +/- 5% Lamp Operation Current - 5mA, +/- 5% Light Coupling - SMA905 Operating Temperature - 0° to 70°C Humidity - 0-85% RH Non-Condensing Dimensions - 3.35in x 2.75in x 1.22in (85mm x 70mm x 31mm) Weight - .3lbs (.135kg)
