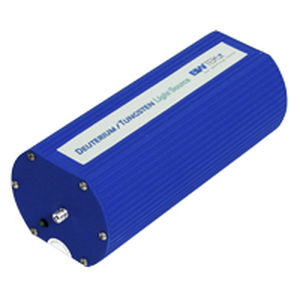

Spectrometry light source BDS100

deuterium halogentungsten halogencompact

The BDS100 is a turnkey fiber coupled UV/Vis/NIR light source providing spectral output from 200 to >1100nm. The 3W electrode-less RF induced Deuterium lamp provides UV emission and offers the advantage of low heat generation and low power consumption. The 3W Tungsten (W) Halogen lamp shares the optical path with the Deuterium (D2) lamp and provides Vis/NIR emission. The BDS100 features a safety shutter and individual On/Off controls for both the Deuterium and Tungsten lamps as well as a SMA 905 connector for fiber optic light coupling. It also includes a DC power supply. The BDS100 is ideal for spectroscopic applications because no fiber alignment is needed. Applications: Transmission Experiments Absorption Experiments Features: UV/Vis/NIR Single Path Shutter Control Fiber Coupled High Stability Long Life Compact Complete Module Spectral Output Range - 200 to > 1100nm Electrical Power Consumption - 6W with Both Lamps On Supply Voltage - 12 V DC at 0.6 A Operating Temperature - 5 - 35°C Relative Humidity - Max. 90%, Non-condensing Warm-up Time - 8 - 10 minutes Dimensions - 6.75 x 3.0 x 2.5 inches (171.45x 76.2 x 63.5mm) Weight - 1.4 lbs (~0.63 kg) Fiber Optic Connector - SMA905 Recommended Fiber Diameter - 200 - 600 μm Deuterium Lamp (D2) Numerical Aperture - Approximately 0.245 Spectral Range - 200 - 400 nm: smooth spectral output 400 - 1100 nm: sharp spectral features expected Power Consumption - About 3W Lifetime - ≥ 1000 hours at 240 nm (50% intensity loss) Stability - < 1 x 10-3 AU Drift - 1100nm
