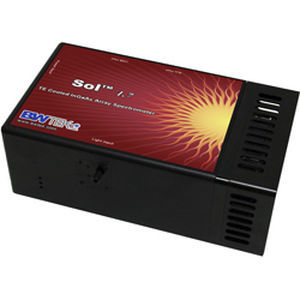

Fiber optic spectrometer Sol 1.7

NIRfor quality controlhand-held

The Sol 1.7 is a high performance linear InGaAs array spectrometer, featuring 512 pixels with TE Cooling down to -5oC, all while providing high throughput and large dynamic range. Each spectrometer features an SMA 905 fiber optic input, a built-in 16- bit digitizer, and is USB 2.0 plug-and-play compatible. With our spectral acquisition software, you can select between High Sensitivity and High Dynamic Range mode within your pre-configured spectral range. Customized spectral resolution and application support are available. The Sol 1.7 NIR spectrometer features extended wavelength and high resolution options, along with deeper TE Cooling, upgraded from +5°C to -10°C for lower noise and better stability. The spectrometer includes additional grating options, allowing for 18 additional configurations between 900 nm – 1700 nm, and resolution as fine as 0.35nm. Redesigned electronics for the Sol 1.7 allow this unit to operate with a 5VDC power supply, making it even more convenient for OEM integrators and end users alike. Applications: Process Monitoring NIR Spectroscopy On-line Analyzer Material Identification Features Resolution as Fine as 0.35nm Built-in 16-bit Digitizer -20oC Thermoelectric Cooling Available Two Gain Modes for Specific Application Needs 256 & 1024 Pixel Configurations Available 1. Fiber Coupler Secures Fiber to Ensure Repeatable Results By coupling a fiber optic to the SMA 905 adaptor, light will be guided to the slit and optically matched, ensuring reproducibility. For free space sampling, a diffusor or lens assembly can be connected directly to the SMA 905 adaptor.
