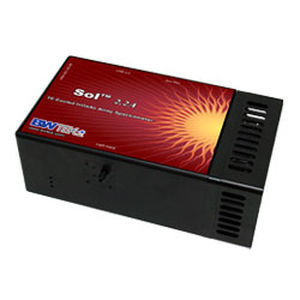

Fiber optic spectrometer Sol 2.2A

NIRfor quality controlsampling

The Sol™ 2.2A NIR spectrometer is a high performance linear InGaAs array spectrometer with an available spectral range of 900-2200nm. Its 256 pixel detector provides high throughput and large dynamic range with TE Cooling down to -15oC via a built-in 3-stage cooler. The built-in autozero function automatically reduces dark current and dark non-uniformity, resulting in an increased signal-to-noise ratio. Software control allows you to choose from four types of operation modes; Maximum Dynamic, High Dynamic, High Sensitivity, and Maximum Sensitivity in order to optimize your spectrometer for your specific application. The Sol 2.2A NIR spectrometer features a SMA 905 fiber optic input, built-in 16-bit digitizer, and is USB 2.0 plug-and-play compatible. This spectrometer is ideal for demanding applications in process monitoring, quality control, and materials identification. Customized spectral resolution and application support are also available for OEM customers. Applications: Process Monitoring On-line Analyzer Material Identification Features Resolution as fine as 9.0 nm -15oC Thermoelectric Cooling Built-in autozero (noise level reduction) Four sensitivity & dynamic range modes for specific application needs 1. Fiber Coupler Secures Fiber to Ensure Repeatable Results By coupling a fiber optic to the SMA 905 adaptor, light will be guided to the slit and optically matched, ensuring reproducibility. For free space sampling, a diffuser or lens assembly can be connected directly to the SMA 905 adaptor.
