Nursing home elevator RB150

privatefor people with reduced mobility

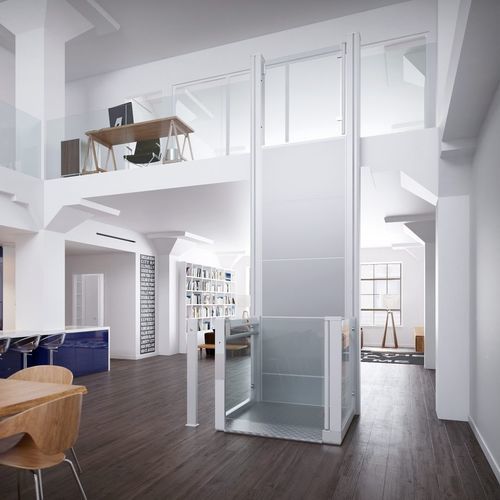

RB150 is an aesthetic and modern platform lift for people with disabilities. The lift’s lifting height can be from 600 mm to 3000 mm. It is a space-saving and economical solution that can be adapted to a variety of locations, both in homes and in commercial or public spaces. Features: Spacious, modern design Takes up little space No shaft required Very quiet operation Easy to use Affordable price Quick and easy to install and maintain RB150 platform lift is an excellent choice for ensuring independent mobility for people with disabilities. RB150 Technical Specifications Lifting height:From 600 mm to 3000 mm Number of stops: 2 Rated load:400 kg Platform size:1100 x 1400 (standard) External dimensions: 1300 x 1760 (standard) Cabin height:1100 mm Doors: 950 x 1100 mm Drive type: Belt drive Power supply:220–240V, 1 phase, 25A 380–400V, 3 phase, 16A, 50Hz Lighting: Illuminated buttons Handles: Integrated into the lift cabin (on both sides) Flooring:Non-slip textured rubber or non slippery aluminium plate Color:RAL 9006 (standard) *other colors available *outdoor lift have AISI 304 stainless steel finish Technical safety equipment: Protective perimeter under the platform (optional), emergency stop buttons inside the platform, electronic speed control, overload detectors, door opening and locking control, belt tension sensors, electronic engine control
