Linear actuator 200 KS
electricmedical

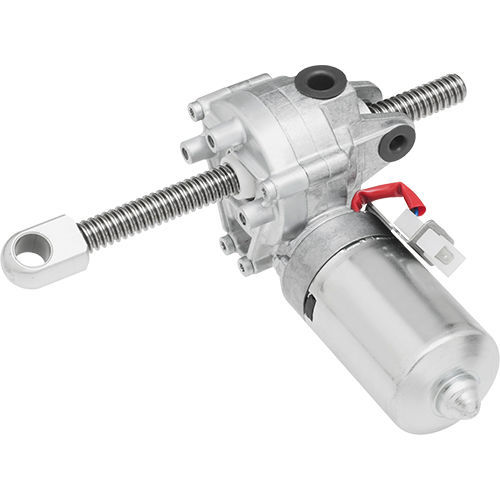

Linear actuator - 200 KS - Baumeister & Schack - electric / medical
Linear actuator - 200 KS - Baumeister & Schack - electric / medical
Linear actuator - 200 KS - Baumeister & Schack - electric / medical - image - 2
Add to favorites
Compare this product


Characteristics

Movement
linear
Type
electric
Applications
medical
Load capacity

2,700 N, 5,400 N, 6,000 N

Speed

6.8 mm/s, 12.3 mm/s, 13.6 mm/s, 27.2 mm/s

Description

Pushing lead screw with different fixing points. Very quiet operation thanks to a solid die cast case. Suitable for controlled inhibited operation with max. current 12 Amps. Additional external end switches preferred. Technology and features: DC Motors 12÷24÷36 V Standard protection up to IP54 Operating temperature 0C° ÷ 40C°

Catalogs

TYP 200 KS
TYP 200 KS
2 Pages
