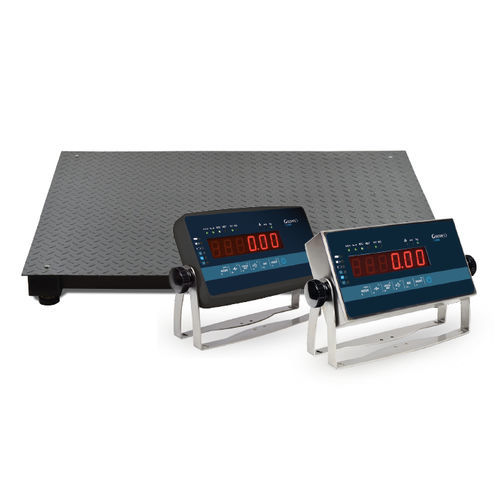

Electronic platform scale TGImultifunctionalwith LED displayclass III
Add to favorites
Compare this product
Characteristics
- Technology
- electronic
- Applications
- multifunctional
- Display type
- with LED display
- Function
- class III, automatic
- Weighing capacity
300 kg, 600 kg, 1,500 kg
(661.39 lb, 1,322.77 lb, 3,306.93 lb)- Readability
100 g, 200 g, 500 g, 1,000 g
(3.5274 oz, 7.0548 oz, 17.637 oz, 35.274 oz)- Width
800 mm, 1,000 mm, 1,200 mm, 1,500 mm
(31.5 in, 39.4 in, 47.2 in, 59.1 in)- Length
Min.: 800 mm
(31.5 in)Max.: 2,000 mm
(78.7 in)
Description
Platform with 4 load cells.
It can be used in legal metrology.
It can be installed on ground.
Diamond plate 5 mm thick.
Steel framework and top diamond pan.
Black enamel.
Load cells OIML R-60 C3, in steel, IP66 protection.
Junction box in ABS, IP66 protection.
Adjustable feet in height.
5 output metres of cable included.
Stainless steel or ABS housing, GI400 model.
IP54 protection.
Red LED display with 6 digits of 20 mm.
Wall support included.
Power supply 230Vac.
2 output RS232 are included.
Unique range, multi-range or multi-interval.
Units: kg.
Approval 6.000 divisions OIML class III and IV.
EC approval.
Weight accumulation: automatic/manual
Totalization on screen
Gross/Net
Manual tare and pretare
Back to zero
Piece counting function
Checkweigher with LED signal
Function division 1/10 verification. Display for a few seconds
