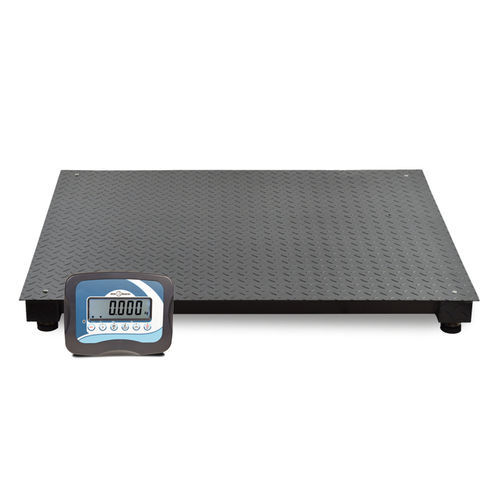

Electronic veterinary weighing scale ZFZ

with LCD displayplatformautomatic

Platform with 4 load cells. Installation on ground. Steel framework and top diamond pan of 3,5 mm. Enamelled in black. 4 Nickel-plated steel load cells, IP66. Junction box, IP66 protection. Adjustable feet in height. 4 output metres of cable included. ABS indicator, model BR15. Backlight LCD display with six 30 mm height digits. Backlight of the display with 3 types: automatic, activated and IP54 protection. Waterproof keyboard with 5 function keys and ON/OFF keys. Keyboard functions: Unit selector, zero, tare, accumulation and manual data transfer to PC or printer. Separate buttons to turn on and off. Rechargeable internal battery 6V/4Ah, 120 hour battery life. Operating temperature range: -10ºC +40ºC. Unique range, multi-range or multi-interval. Power supply with adaptor AC/DC 240Vac 50Hz. Unit 1 to choose: off, kg,t and g; Unit 2 to choose: off, lb, lboz; Unit 3 to choose: off, Taiwan Jin, CA or VISS. RS232 output (PC and print formats). Auto switch off (programmable: from 1 to 99 minutes). Accumulation Totalization Piece counting Zero Hold 4 modes: deactivate, filter for animals, peak value, stable weight and stable weight with auto cancel in zero Control of weight and pieces (limits function) with visual signal and alarm. Three speeds of AD converter (high, medium and low) Programmable gravity Gross/Net Tare
