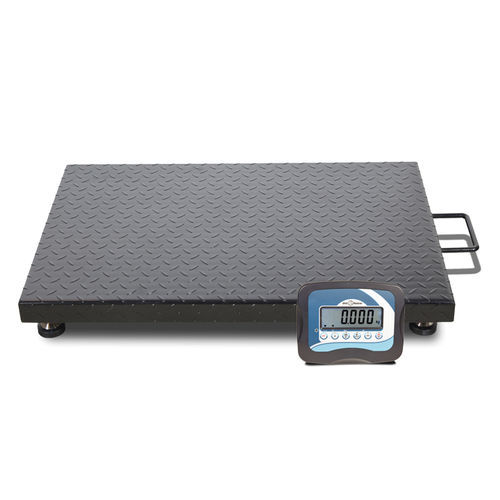

Electronic weighing scale ZFD

for animalswith LCD displayplatform

Platform with 4 load cells with steel framework and diamond plate up to 5 mm thick. Junction box in ABS, IP66. Lifting handle for installation and maintenance. It can be installed on ground. ABS indicator, model BR15. Backlight LCD display with six 30 mm height digits. Backlight of the display with 3 types: automatic, activated and deactivated. IP54 protection. Waterproof keyboard with 5 function keys and ON/OFF keys. Keyboard functions: Unit selector, zero, tare accumulation and manual data transfer to PC or printer. Rechargeable internal battery 6V/4Ah. Operating temperature range: -10ºC +40ºC. Unique range, multi-range or multi-interval. Power supply with adaptor AC/DC 240Vac 50Hz. Unit 1 to choose: off, kg, t and g; Unit 2 to choose: off, lb, lboz; Unit 3 to choose; off, Taiwan Jin, CA or VISS. RS232 output (PC and print formats). Auto switch off (programmable: from 1 to 99 minutes). Accumulation Totalization Piece counting Zero Hold 4 modes: deactivate, filter for animals, peak value, stable weight and stable weight with auto cancel in zero Check weighing (limits function) visual and alarm signals Three speeds of AD converter (high, medium and low) Programmable gravity Gross/Net Tare
