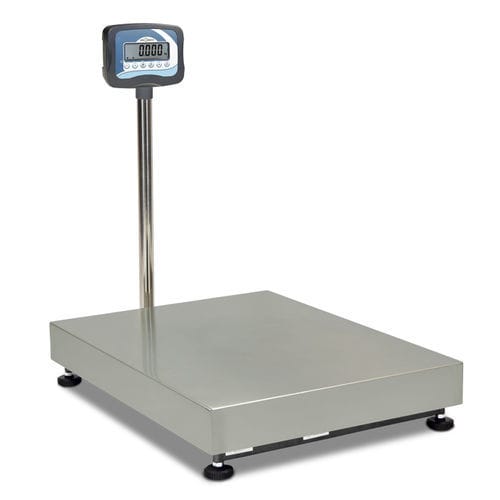

Electronic platform scale TMZ

for chemical industryfor the pharmaceutical industrywith LCD display

Platform of tubular in painted steel, with stainless steel plate and stainless steel column. Aluminium load cell with IP65 protection. Column of 649 mm with a base of attachment in painted steel (Model P 447 mm). 4 adjustable feet in height, with an increase of up to 13 mm. Cable lenght platform-indicator: 1200 mm (up to 1370 mm, according to model). ABS indicatior, model Br15. IP54 protection. Waterproof keyboard with 5 function keys and ON/OFF keys. Backlight LCD display with six 30 mm height digits. Backlight of the display with 3 types: automatic, activated and deactivated. ABS support for column. Holes for wall anchor included. Operating temperature range: -10ºC +40ºC. Power supply with adaptor AC/DC 240Vac 50Hz. 120 hours approx. battery life with backlighting on. 160 hours approx. battery life without backlighting. Programmable gravity. Unit 1 to choose: off, kg, t and g; Unit 2 to choose: off, lb, lboz; Unit 3 to choose (PC and print formats). Unique range, multi-range or multi-interval. Auto switch off (programmable: from 1 to 99 minutes). Accumulation Totalization Piece counting Zero Hold 4 modes: deactivate, filter for aniamsl, peak value, stable weight and stable weight with auto cancel in zero) Check weighing (limits function) with visual and alarmsignals Three speeds of AD converter (high, medium and low) Gross/NEt Tare
