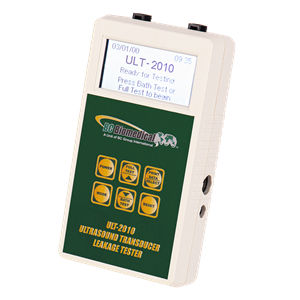

Ultrasonic leak tester ULT-2010

for medical devicesportabledigital

The ULT-2000 Series is a family of microprocessor-based, ultrasound transducer leakage testers.The ULT-2010 measures both the conductivity of the cleaning medium and the leakage current of the ultrasound transducer. Features: • Large graphics display with cursor selection of options and setup of parameters • User-selectable source (challenge) voltage (90 to 275 VAC) • User-selectable source (challenge) frequency (50 or 60 Hz) • User-selectable test limits by ultrasound transducer manufacturer and model • 1% FS measurement accuracy • Auto ranging with 10, 250, or 500 mA FS • Automatic internal self test • Single button press for full system test • Simple pass / fail mode – for non-technical users • Analytical mode – for technical users • Digital calibration – no pots to turn • User-selectable display options • Battery life display (0 to 100%) • Programmable backlight timer • Contrast is software adjustable • Flash upgradeable firmware • RS-232 Communications • PC software (limit configuration tool) • Serial printer output with programmable user header • Real time clock • Compatible with Dale Technology® Dale 800 and Fluke Biomedical® ULT 800 ultrasound transducer adapters and dual conductivity probes
