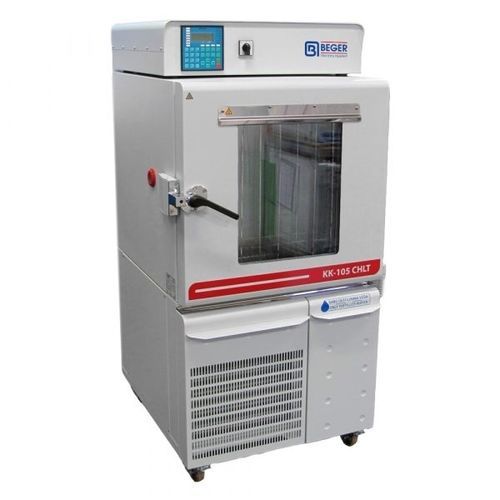

Climate chamber KK-105 CHLT

humiditytemperaturetemperature stability

Climatic chambers BEGER enable accurate simulation of environmental conditions and are used for research into changing temperature and humidity conditions. Temperature and relative humidity controlled test polygon; Material temperature & Rh resistance and product testing; Maintaining superior temperature & Rh stability; Sample conditioning prior to other tests; Data loggers and sensors calibration; World class metrology performance; Accelerated ageing; Stress tests. Attributes Internal dimensions (WxHxD) - 490 x 498 x 430 mm Heat up rate - 2,8 °C/min (EN 60068-3-5) Cool down rate - 3,5 °C/min (EN 60068-3-5) Temperature display resolution - 0.1 °C Temperature set resolution - 0.1 °C Temperature stability - ± 0,2 °C @ – 40°C ± 0,05 °C @ 50 °C 50 % Rh ± 0,05 °C @ 90 °C 90 % Rh ± 0,2 °C @ 180°C Temperature uniformity - ± 1,0 °C @ – 40 °C ± 0,4 °C @ 50 °C 50 % Rh ± 0,4 °C @ 90 °C 90 % Rh ± 1, 5°C @ 180 °C Relative humidity range - 10…98 % Relative humidity display resolution - 0.1 % Relative humidity set resolution - 1 % Relative humidity stability - ± 0,5 % @ 50 °C 50 % Rh ± 0,5 % @ 90 °C 90 % Rh Temperature control - PID Relative humidity control - Dew point humidity control / dry air purge for extended Power supply - 230V 50/60Hz Interface - RS 232 (USB or Ethernet as accessory) Shelve - 1 (max 6) Shelve capacity - 35 kg Max capacity - 60 kg Access port - Ø 40 standard (Ø 50, Ø 90 as accessory) Noise (dBA) @ 1 m distance - 58 Weight - 238 kg
