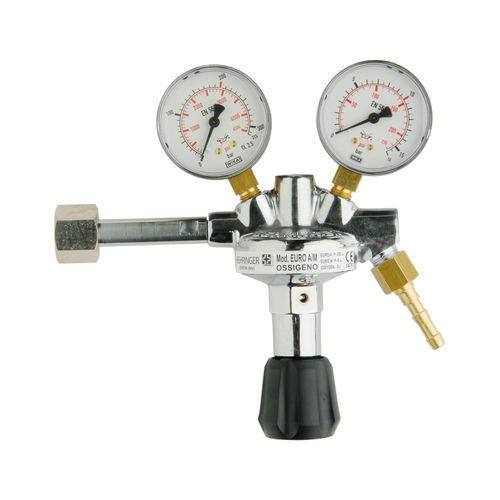

Gas pressure regulator EURO/A

medicalintegratedadjustable-flow

Pressure regulator for cylinders, suitable for medical gases, equipped with dual pressure gauge to show high and low pressure, used on outlet of cylinders to reduce the pressure down to the line or equipment set.Maximum inlet pressure is 200 bar, the outlet pressure is adjustable up to 12 bar.The gas inlet connection is specific to the gas type, the outlet is fitted with an Ø 6 hose connector.Its maximum nitrogen capacity at 12 bar outlet pressure is 60 Nm ³/h, 1000 Nl/min. Connection, body, cap and overpressure discharge valve integrated in the pressure regulator, made of CW617N chemically nickel-plated brass. Pressure adjustment by threaded screw and black NYLON knob. N.One gas-specific inlet. N.One Ø6 mm hose connector on the outlet. N.One 0-315 bar inlet pressure gauge, Ø 63 mm, class 2.5. N.One 0-16 bar outlet pressure gauge, Ø 63 mm, class 2.5. Stainless steel springs. FKM O-Ring and membrane for O2, NBR O-ring and membrane for other gases. NYLON seal seat for O2, PTFE seal seat for other gases. NYLON gaskets. EN ISO 10524-1 | EN ISO 10524-2 | EN 837-1 | EN ISO 14971 | EN ISO 15001
