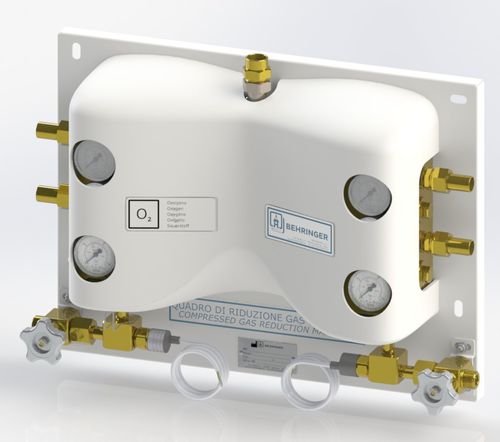

Oxygen supply unit ECO/7 EVO

CO2N2ON2

Medium/high flow rate control panel for medicinal gases, available both with automatic change-over and manual reset and fully automatic; both versions are available with pressure switch; consisting of two double reduction lines, it guarantees continuous supply with high pressure stability; complete with manifolf exaust valve; the outlet connector is for a Ø 22 mm welded pipe; its maximum flow rate with nitrogen at 9 bar outlet pressure is 90 Nm³/h, 1500Nl/min; the panel is completed by a steel plate and a white polycarbonate cover that is light and practical to install. N.2 high pressure reducers 451 in brass and pressure regulation with stainless steel threaded dowel. N.2 low pressure reducers 451 in brass and pressure regulation with stainless steel threaded dowel. N.4 overpressure relief valves incorporated in the brass reducers. N.2 specific inputs based on the gas used. N.2 high pressure bleed valves with conveyable exhaust. N.1 outlet with fitting for Ø22 mm welded pipe. N.2 shut-off valves for High Pressure in brass. N.2 Low Pressure shut-off valves for maintenance. N.2 brass non-return valves. N.2 High Pressure gauges, 0-315 bar scale, class 2.5. N.2 low pressure gauges, scale 0-16 bar, class 2.5. N.2 sintered bronze filters (filtration degree N.2 high pressure switches Stainless steel springs. EPDM PEROX membrane. NYLON seat. O-Ring EPDM PEROX. NYLON gaskets. PETG white cover. Metal fixing plate with powder coated finish. Normatives EN ISO 10524-2 | EN ISO 7396-1 | EN ISO 15001
