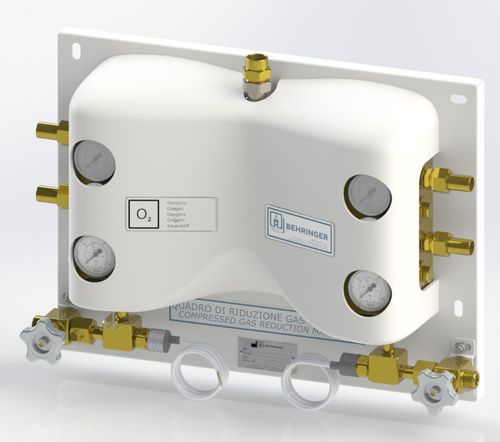

Oxygen supply unit ECO/7 EVO

CO2N2ON2

1st stage compressed gas manifols, medium / high flow rate for medical gases, available both with automatic change - over and manual reset and fully automatic; both versions are available with pressure switch or transducer; consisting of two double-head reduction lines, it guarantees continuity of supply with high stability at the operating pressure of 5 bar; complete with ramp purge valves; very compact, it is completed by a powder-coated steel plate and a white polycarbonate lid that is light and practical to install. Components N.2 high pressure reducers 451 in brass and pressure regulation with stainless steel threaded dowel. N.2 low pressure reducers 451 in brass and pressure regulation with stainless steel threaded dowel. N.4 overpressure relief valves incorporated in the brass reducers. N.2 specific inputs based on the gas used. N.2 high pressure bleed valves with conveyable exhaust. N.1 outlet with fitting for Ø22 mm welded pipe. N.2 shut-off valves for High Pressure in brass. N.2 Low Pressure shut-off valves for maintenance. N.2 brass non-return valves. N.2 High Pressure gauges, 0-315 bar scale, class 2.5. N.2 low pressure gauges, scale 0-16 bar, class 2.5. N.2 sintered bronze filters (filtration degree N.2 high pressure switches Stainless steel springs. EPDM membranes. NYLON seat for O2, TEFLON for other gases. EPDM O-Ring. NYLON gaskets. Cover in white PETG. Powder coated metal fixing plate. Normatives EN ISO 10524-2 | EN ISO 7396-1 | EN ISO 15001
